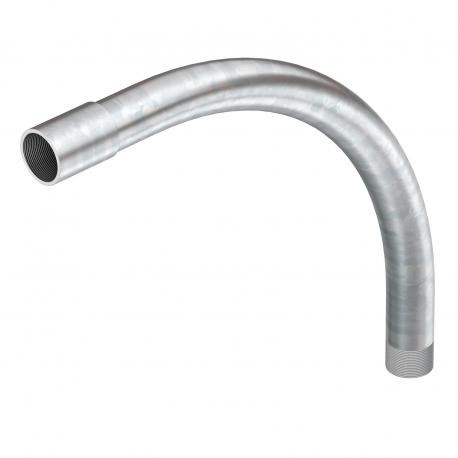

OBO BETTERMANN SBNM16 G 2046778 OBO BETTERMANN CURVE M16 G THREADED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2046778 OBO BETTERMANN CURVE M16 G THREADED

SBNM16 G

2046778

OBO BETTERMANN

15 Pcs.

CURVE M16 G THREADED Electrogalvanised steel bend, with thread. 90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.One connection sleeve is already screwed onto each pipe bend.

Cables > Bend for installation tubes
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A threaded steel curve serves as an essential transition element in electrical conduit systems, providing a secure threaded connection to guide wiring around 90-degree building corners. The Obo Bettermann SBNM16 G product ensures reliable mechanical protection for low-diameter cabling networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle of the bend: 90 °
  • Brushed surface: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,3759 kg CO2e / 1 Piece
  • Dimension: M16x1,5
  • Dimension A: 45 mm
  • Dimension B: 103 mm
  • Dimension D: 16 mm
  • Dimension l: 13 mm
  • Dimension m (mm): M16
  • Dimension R: 50 mm
  • Dimension t: 1,4 mm
  • Flexible: no
  • For nominal pipe diameter: 16 mm
  • Halogen-free: no
  • Material: Steel
  • Polished surface: no

More info

▲
Angle of the bend90 °
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate0,3759 kg CO2e / 1 Piece
DimensionM16x1,5
Dimension A45 mm
Dimension B103 mm
Dimension D16 mm
Dimension l13 mm
Dimension m (mm)M16
Dimension R50 mm
Dimension t1,4 mm
Flexibleno
For nominal pipe diameter16 mm
Halogen-freeno
MaterialSteel
Polished surfaceno
SurfaceElectrogalvanized
ThreadM16x1,5
Two-partno
Version forThread
With inspection opening and lidno
With sleeveyes
