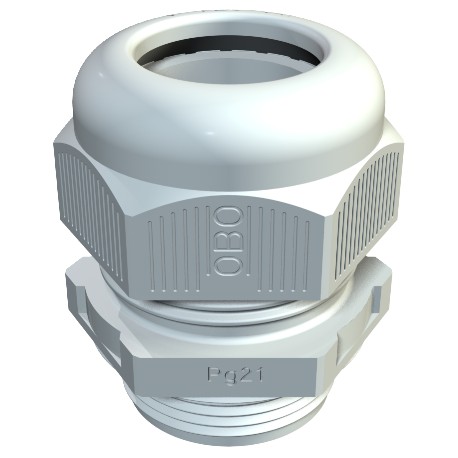

OBO BETTERMANN V-TEC PG42 LGR 2024799 OBO BETTERMANN CABLE GLAND V-TEC PG42 GRCL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2024799 OBO BETTERMANN CABLE GLAND V-TEC PG42 GRCL

V-TEC PG42 LGR

2024799

OBO BETTERMANN

5 Pcs.

CABLE GLAND V-TEC PG42 GRCL Cable gland, PG thread, light grey. Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

Cables > Cable gland
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 2024799 OBO BETTERMANN CABLE GLAND V-TEC PG42 GRCL acts as a protective mechanical entry point designed to anchor and seal large-diameter cables passing through enclosure walls. This hardware prevents pulling forces from reaching terminal blocks while sealing out dust and liquids.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,4299 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL 7035:
  • Dimension: PG42
  • Dimension E: 68 mm
  • Dimension L max.: 57 mm
  • Dimension L min.: 42 mm
  • Dimension L1: 13 mm
  • Dimension L2: 9 mm
  • Dimension L3: 32,5 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flat cable gland: no
  • For Ex zone: Without
  • For Ex zone dust: Without
  • For Ex zone gas: Without

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,4299 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionPG42
Dimension E68 mm
Dimension L max.57 mm
Dimension L min.42 mm
Dimension L113 mm
Dimension L29 mm
Dimension L332,5 mm
explosion-proofno
Fibre-glass reinforcedno
Flat cable glandno
For Ex zoneWithout
For Ex zone dustWithout
For Ex zone gasWithout
Halogen-freeyes
Hexagonal corner dimension68,5 mm
Impact-resistantno
MaterialPolyamide
Nominal thread size42
Permitted temperature range, max.65 °C
Permitted temperature range, min.-20 °C
Protection ratingIP68
Sealing area D, max.38 mm
Sealing area D, min.24 mm
Sealing insert, multipleno
Splittable glandno
Strain relief optionyes
ThreadPg 42
Thread increase1,41 mm
Thread length13 mm
Thread typePG
Type of sealSealing ring
Unstable torque5 Nm
Version forStraight
WAF60
With locknutno
