View larger
Images are for illustrative purposes only. Please refer to data sheet for details

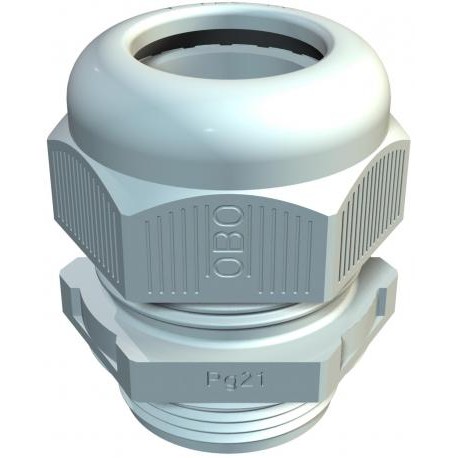

2024764 OBO BETTERMANN CABLE GLAND V-TEC PG21 GRCL
V-TEC PG21 LGR
2024764
OBO BETTERMANN
25 Pcs.
CABLE GLAND V-TEC PG21 GRCL
Cable gland, PG thread, light grey. Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Cables > Cable gland
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1001 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | PG21 |
| Dimension E | 37,5 mm |
| Dimension L max. | 38 mm |
| Dimension L min. | 28 mm |
| Dimension L1 | 11 mm |
| Dimension L2 | 6 mm |
| Dimension L3 | 22 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Hexagonal corner dimension | 37,5 mm |
| Impact-resistant | no |
| Material | Polyamide |
|---|---|
| Nominal thread size | 21 |
| Permitted temperature range, max. | 65 °C |
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 18 mm |
| Sealing area D, min. | 9 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | yes |
| Thread | Pg 21 |
| Thread increase | 1,41 mm |
| Thread length | 11 mm |
| Thread type | PG |
| Type of seal | Sealing ring |
| Unstable torque | 5 Nm |
| Version for | Straight |
| WAF | 33 |
| With locknut | no |
