View larger
Images are for illustrative purposes only. Please refer to data sheet for details

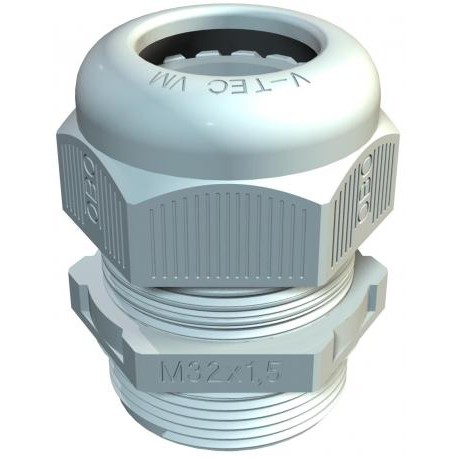

2022870 OBO BETTERMANN CABLE GLAND V-TEC M32X1,5 GRCL
V-TEC VM32 LGR
2022870
OBO BETTERMANN
20 Pcs.
CABLE GLAND V-TEC M32X1,5 GRCL
Cable gland, metric thread, light grey. Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Cables > Cable gland
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1045 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | M32 |
| Dimension E | 41 mm |
| Dimension L max. | 40 mm |
| Dimension L min. | 29 mm |
| Dimension L1 | 11 mm |
| Dimension L2 | 6 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Flat cable gland | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Hexagonal corner dimension | 41 mm |
| Impact-resistant | no |
| Material | Polyamide |
|---|---|
| Nominal thread size | 32 |
| Permitted temperature range, max. | 65 °C |
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 21 mm |
| Sealing area D, min. | 15 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | yes |
| Thread | M32 x 1,5 |
| Thread increase | 1,5 mm |
| Thread length | 11 mm |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Unstable torque | 7,5 Nm |
| Version for | Straight |
| WAF | 36 |
| With locknut | no |
