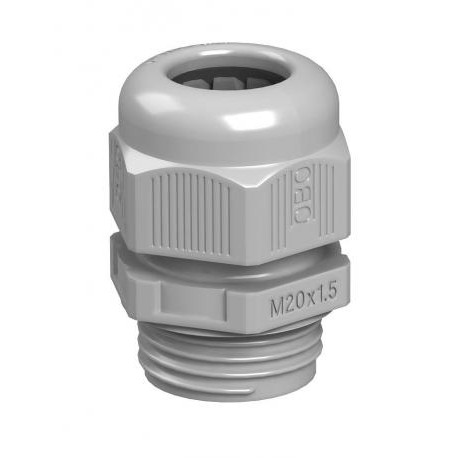

2022866 OBO BETTERMANN CABLE GLAND V-TEC M20X1,5 GRCL
V-TEC VM20 LGR
2022866
OBO BETTERMANN
50 Pcs.
Cables > Cable gland
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann V-TEC VM20 LGR cable gland reliably anchors wiring through enclosure walls to prevent pull strain and keep out dust and liquids. Cable fittings are fundamental parts of electrical installations, ensuring safe and durable cable entry for control panels.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Bend protection: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0408 kg CO2e / 1 Piece
- Colour: Light grey
- RAL: 7035
- Dimension: M20
- Dimension E: 27 mm
- Dimension L max.: 30,5 mm
- Dimension L min.: 23,5 mm
- Dimension L1: 9 mm
- Dimension L2: 5 mm
- explosion-proof: no
- Fibre-glass reinforced: no
- Flame-resistant: acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
- Flat cable gland: no
- For Ex zone: Without
- For Ex zone dust: Without
- For Ex zone gas: Without
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0408 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | M20 |
| Dimension E | 27 mm |
| Dimension L max. | 30,5 mm |
| Dimension L min. | 23,5 mm |
| Dimension L1 | 9 mm |
| Dimension L2 | 5 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Flat cable gland | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Hexagonal corner dimension | 27 mm |
| Impact-resistant | no |
| Material | Polyamide |
|---|---|
| Nominal thread size | 20 |
| Permitted temperature range, max. | 65 °C |
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 13 mm |
| Sealing area D, min. | 6 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | yes |
| Thread | M20 x 1,5 |
| Thread increase | 1,5 mm |
| Thread length | 10 mm |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Unstable torque | 3,8 Nm |
| Version for | Straight |
| WAF | 24 |
| With locknut | no |
