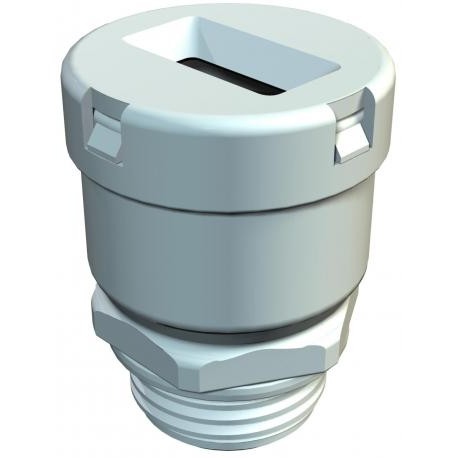

OBO BETTERMANN 106 FL M20 8 19 2013002 OBO BETTERMANN PRESNAESTOPAS 106 FL M20 8 19 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2013002 OBO BETTERMANN PRESNAESTOPAS 106 FL M20 8 19

106 FL M20 8 19

2013002

OBO BETTERMANN

50 Pcs.

PRESNAESTOPAS 106 FL M20 8 19 Flat cable threaded connection, metric thread M20, stone grey. Flat-cable entry, choke-nipple design with metric connecting thread to IEC 432, protection rating IP31, with pre-mounted support sealing ring 107/F.

Cables > Cable gland
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for flat cable configurations, this 106 FL M20 8 19 threaded connection by Obo Bettermann securely routes specialized ribbon conductors into control equipment. Industrial applications rely on flat cable entries to maintain orderly organization and environmental sealing for specialized transport and lifting systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0607 kg CO2e / 1 Piece
  • Colour: Stone grey; RAL 7030
  • Dimension: M20
  • Dimension D: 32,5 mm
  • Dimension G: M20 mm
  • Dimension L: 42 mm
  • Dimension L1: 12 mm
  • Dimension L2: 30 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flat cable gland: yes
  • Flat cable/width, max.: 19 mm
  • Flat cable/width, min.: 17 mm
  • Flat cables/thickness, max.: 8 mm
  • Flat cables/thickness, min.: 6 mm

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,0607 kg CO2e / 1 Piece
ColourStone grey; RAL 7030
DimensionM20
Dimension D32,5 mm
Dimension GM20 mm
Dimension L42 mm
Dimension L112 mm
Dimension L230 mm
explosion-proofno
Fibre-glass reinforcedno
Flat cable glandyes
Flat cable/width, max.19 mm
Flat cable/width, min.17 mm
Flat cables/thickness, max.8 mm
Flat cables/thickness, min.6 mm
For Ex zoneWithout
Impact-resistantno
MaterialPolyethylene
Protection ratingIP31
Sealing insert, multipleno
Strain relief optionno
ThreadM20
Thread typeMetric
Type of sealSealing ring
Version forStraight
WAF27
With locknutno
