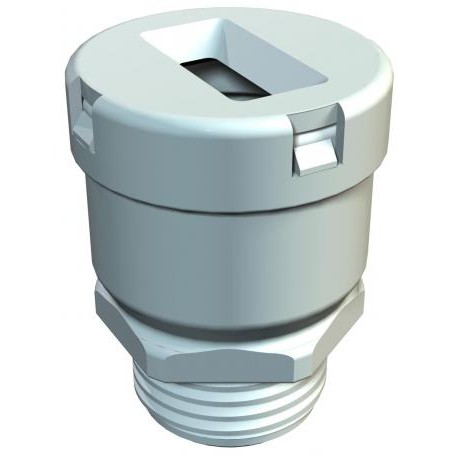

OBO BETTERMANN 106 FL 16 8 19 2012758 OBO BETTERMANN PACKING GLAND 106/FL PG 16 8 19 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2012758 OBO BETTERMANN PACKING GLAND 106/FL PG 16 8 19

106 FL 16 8 19

2012758

OBO BETTERMANN

50 Pcs.

PACKING GLAND 106/FL PG 16 8 19 Flat cable threaded connection, PG thread Pg 16, stone grey. Flat-cable entry, choke-nipple design with PG connecting thread to DIN 40430, protection rating IP31, with pre-mounted support sealing ring 107/F.

Cables > Cable gland
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for routing rectangular bus structures, the Obo Bettermann packing gland 106/FL PG 16 8 19 ensures a tight environmental seal for specialized flat wiring. Panel builders utilize these dedicated fittings to prevent moisture and particle infiltration where flat cabling is implemented. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0451 kg CO2e / 1 Piece
  • Colour: Stone grey
  • RAL: 7030
  • Dimension: PG16
  • Dimension D: 32,5 mm
  • Dimension G: PG16 mm
  • Dimension L: 42 mm
  • Dimension L1: 12 mm
  • Dimension L2: 30 mm
  • Fibre-glass reinforced: no
  • Flat cable gland: yes
  • Flat cable/width, max.: 19 mm
  • Flat cable/width, min.: 17 mm
  • Flat cables/thickness, max.: 8 mm
  • Flat cables/thickness, min.: 6 mm
  • For Ex zone: Without

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,0451 kg CO2e / 1 Piece
ColourStone grey; RAL 7030
DimensionPG16
Dimension D32,5 mm
Dimension GPG16 mm
Dimension L42 mm
Dimension L112 mm
Dimension L230 mm
Fibre-glass reinforcedno
Flat cable glandyes
Flat cable/width, max.19 mm
Flat cable/width, min.17 mm
Flat cables/thickness, max.8 mm
Flat cables/thickness, min.6 mm
For Ex zoneWithout
Impact-resistantno
MaterialPolyethylene
Protection ratingIP31
Sealing insert, multipleno
Strain relief optionno
ThreadPg 16
Thread typePG
Type of sealSealing ring
Version forStraight
WAF27
With locknutno
