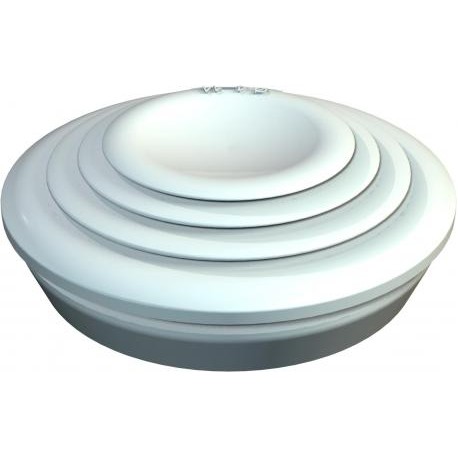

OBO BETTERMANN EDK 32 LGR 2011646 OBO BETTERMANN CONE EDK 32 LGR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2011646 OBO BETTERMANN CONE EDK 32 LGR

EDK 32 LGR

2011646

OBO BETTERMANN

50 Pcs.

CONE EDK 32 LGR Plug-in seal EDK light grey. The plug-in seal can be cut back to suit the relevant cable diameter.

Cables > Cable plug sealing clamp
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Offering reliable conduit entry sealing, this 2011646 OBO BETTERMANN CONE EDK 32 LGR part is standard for electrical installations. Plug-in seals and grommets are routinely utilized in junction boxes and device housings to protect internal circuitry against dust and moisture ingress while simplifying cable routing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0151 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Dimension: Ø32/5-25
  • Dimension A: 2,2 mm
  • Dimension D1: 36,4 mm
  • Dimension D2: 32,3 mm
  • Dimension D3: 5 mm
  • Dimension D4: 14 mm
  • Dimension D5: 15 mm
  • Dimension L: 11,4 mm
  • for diameter, max.: 25 mm
  • for diameter, min.: 5 mm
  • for wall thickness, max.: 2,2
  • for wall thickness, min.: 2,2
  • Halogen-free: yes
  • Material: Thermoplastic elastomer

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0151 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionØ32/5-25
Dimension A2,2 mm
Dimension D136,4 mm
Dimension D232,3 mm
Dimension D35 mm
Dimension D414 mm
Dimension D515 mm
Dimension L11,4 mm
for diameter, max.25 mm
for diameter, min.5 mm
for wall thickness, max.2,2
for wall thickness, min.2,2
Halogen-freeyes
MaterialThermoplastic elastomer
Nominal diameter32 mm
Protection ratingIP55
SizeM32
Version forCuttable
