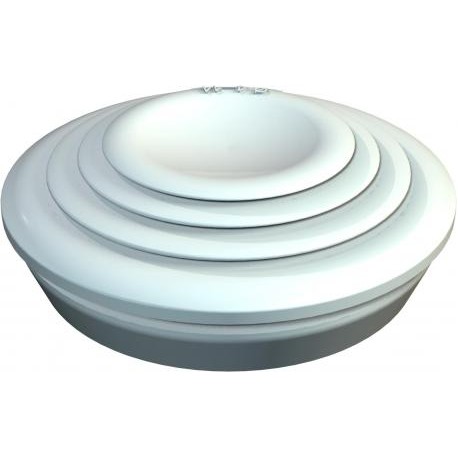

OBO BETTERMANN EDK 25 LGR 2011638 OBO BETTERMANN CONE EDK 25 LGR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2011638 OBO BETTERMANN CONE EDK 25 LGR

EDK 25 LGR

2011638

OBO BETTERMANN

100 Pcs.

CONE EDK 25 LGR Plug-in seal EDK light grey. The plug-in seal can be cut back to suit the relevant cable diameter.

Cables > Cable plug sealing clamp
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cone from Obo Bettermann, cataloged as EDK 25 LGR, is utilized to protect cable entry points and maintain seal integrity in industrial enclosures. Components like this prevent contaminants from entering junction boxes and control panels during standard operational cycles.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0072 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Dimension: Ø25/5-20
  • Dimension A: 2,2 mm
  • Dimension D1: 29,5 mm
  • Dimension D2: 25,4 mm
  • Dimension D3: 5 mm
  • Dimension D4: 14 mm
  • Dimension D5: 15 mm
  • Dimension L: 10,1 mm
  • for diameter, max.: 20 mm
  • for diameter, min.: 5 mm
  • for wall thickness, max.: 2,2
  • for wall thickness, min.: 2,2
  • Halogen-free: yes
  • Material: Thermoplastic elastomer

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0072 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionØ25/5-20
Dimension A2,2 mm
Dimension D129,5 mm
Dimension D225,4 mm
Dimension D35 mm
Dimension D414 mm
Dimension D515 mm
Dimension L10,1 mm
for diameter, max.20 mm
for diameter, min.5 mm
for wall thickness, max.2,2
for wall thickness, min.2,2
Halogen-freeyes
MaterialThermoplastic elastomer
Nominal diameter25 mm
Protection ratingIP55
SizeM25
Version forCuttable
