OBO BETTERMANN KLS-SDB 09S 2008918 OBO BETTERMANN REGLETA2P TOR+ 12P S/TOR SDB 09 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2008918 OBO BETTERMANN REGLETA2P TOR+ 12P S/TOR SDB 09

KLS-SDB 09S

2008918

OBO BETTERMANN

1 Pcs.

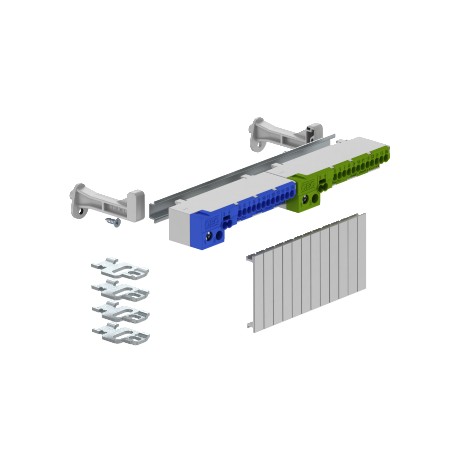

REGLETA2P TOR+ 12P S/TOR SDB 09 Terminal strip set with screwless terminals for SDB 09. Terminal strip set for the small distributors of the SDB series. The sets can be used to expand and equip the empty small distributors of the SDB 09... type series.Mounting instructions; cover strip; hat rail with corresponding support and fastening material; one protective conductor terminal and one neutral conductor terminal each with two 16/25 mm² screw terminals and 2x 4 mm² and 12x 2.5 mm² screwless terminals

Automation > Single- and multi-pole terminal strip
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann KLS-SDB 09S is a specialized terminal strip used for organizing and connecting multiple electrical conductors within distribution boards. Panel builders utilize these strips to maintain orderly circuit layouts and ensure reliable mechanical and electrical contact across complex installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 1,7772 kg CO2e / 1 Piece
  • Cross-section: 2.5 mm²
  • Dimension: 172x15x4
  • Height: 4 mm
  • Length: 172 mm
  • Width: 15 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,7772 kg CO2e / 1 Piece
Cross-section2.5 mm²
Dimension172x15x4
Height4 mm
Length172 mm
Width15 mm
