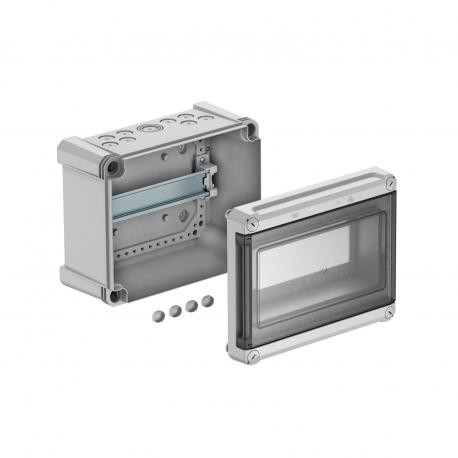

OBO BETTERMANN SDB 09L PC SDB 09L PC 2008868 OBO BETTERMANN BOX, DISTR.WITHOUT REGLT.9 DISP PC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SDB 09L PC 2008868 OBO BETTERMANN BOX, DISTR.WITHOUT REGLT.9 DISP PC

SDB 09L PC

2008868

OBO BETTERMANN

1 Pcs.

BOX, DISTR.WITHOUT REGLT.9 DISP PC Small SDB 09L PC distribution board, without power strip, 9 devices 240x191x125 Polycarbonate, PC, Small distributor 9 separations, vacuum, made of polycarbonate. Small distributor for flush mounting, for indoor and outdoor power sub-distribution, according to IEC 439-3. With pre-assembled 35 mm U-rail. IP66 protection class and IK08 protection degree Transparent cover for screwing, with section. Included 4 threaded plugs.- Protective insulation for a maximum of 9 dividing units- 8 rupture openings Ø 20 mm each at the top and bottom- 1 combined opening Ø 20/25/32 mm at the top and bottom- 4 screw capsThe small PC distributors are suitable for indoor and outdoor mounting. Rated current: 63 A Lost power at 40 K: 20.7 W

Automation > Small distribution board
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann part number SDB 09L PC is a distribution box designed to house and protect modular electrical equipment in demanding commercial or industrial environments. Such protective enclosures ensure safe cable routing and organization of circuit protection elements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of rows (EF000266): 1
  • Width in number of modular spacings (EF002950): 9
  • Type of covering (EF000339): Cover
  • Transparent cover/door (EF006244): Yes
  • With lock (EF006306): No
  • Housing material (EF001596): Plastic
  • DIN-rail (EF001134): Yes
  • With mounting plate (EF000118): No
  • Extension possible (EF001088): Yes
  • EMC-version (EF001062): No
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • Degree of protection (IP) (EF005474): IP66
  • Height (EF000040): 126 mm
  • Width (EF000008): 191 mm
  • Depth (EF000049): 126 mm

More info

▲
Surface-mounted distribution box, with protective insulation for max. 9 division units. There are 9 break-out openings (8x Ø20 and 1x Ø20/25/32) on both the upper and lower sides incl. pre-mounted 35 mm hat profile support rail. The four screw cover caps supplied prevent unwanted "voltage carry-over".
