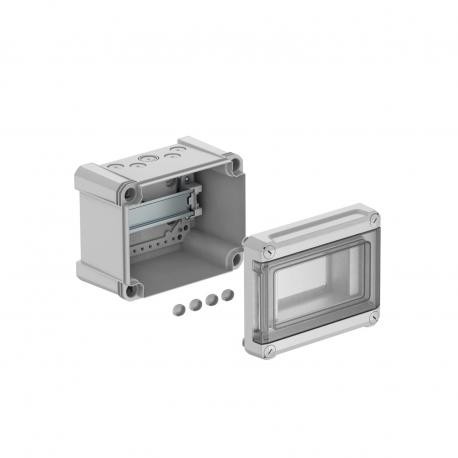

OBO BETTERMANN SDB 05L PC 2008864 OBO BETTERMANN BOX, DISTR.WITHOUT REGLT.5 DISP PC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2008864 OBO BETTERMANN BOX, DISTR.WITHOUT REGLT.5 DISP PC

SDB 05L PC

2008864

OBO BETTERMANN

1 Pcs.

BOX, DISTR.WITHOUT REGLT.5 DISP PC Distribution box, 5 division units, empty, polycarbonate. Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK08 protection rating. Transparent cover to screw on, with cut-out. Including 4 screw cover caps.- Protection-insulated for a maximum of 5 division units- 4 Ø 20 mm break-out openings each at the top and bottom- 1 Ø 20/25 mm combination break-out opening each at the top and bottom- 4 screw cover capsNominal current 40 APower loss at 40 K 19 W

Automation > Small distribution board
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Box, distr.without reglt.5 disp PC is a polycarbonate modular enclosure designed by Obo Bettermann under the part number SDB 05L PC. It provides robust environmental protection for small sub-distribution assemblies in commercial and industrial settings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 2,8743 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Cover type: Cover
  • Dimension: 190x150x125
  • DIN rail: yes
  • EMC version: no
  • Extension option: yes
  • Height: 126 mm
  • Length: 191 mm
  • Material: Polycarbonate
  • Mounting type, consumer units: Structure
  • Nominal current: 40 A
  • Nominal voltage: 400 V
  • Number of rows: 1
  • Protection rating: IP66
  • Protection rating IK code: IK08

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate2,8743 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Cover typeCover
Dimension190x150x125
DIN railyes
EMC versionno
Extension optionyes
Height126 mm
Length191 mm
MaterialPolycarbonate
Mounting type, consumer unitsStructure
Nominal current40 A
Nominal voltage400 V
Number of rows1
Protection ratingIP66
Protection rating IK codeIK08
Transparent lidyes
Version, small distributor coverWith cut-out
Width151 mm
Width in divisional units5
With lockno
With mounting plateno
