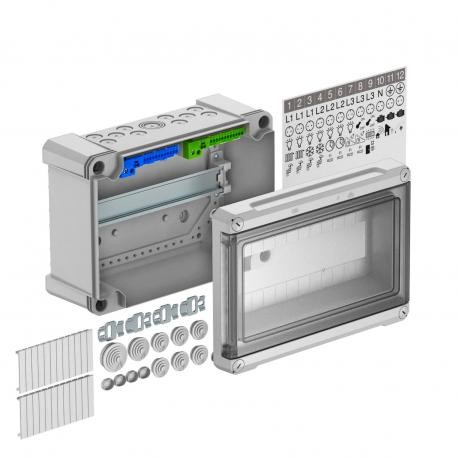

OBO BETTERMANN SDB 12 PC 2008852 OBO BETTERMANN DISTRIBUTION BOX 12 DISP PC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2008852 OBO BETTERMANN DISTRIBUTION BOX 12 DISP PC

SDB 12 PC

2008852

OBO BETTERMANN

1 Pcs.

DISTRIBUTION BOX 12 DISP PC Distribution box, 12 division units, with terminal strip, polycarbonate. Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK08 protection rating. Transparent cover to screw on, with cut-out.- Protection-insulated for a maximum of 12 division units- Terminal strip set consisting of: One each of: PE/N terminal (1x25 mm² and 1x16 mm² screw terminals, 2x4 mm² and 12x2.5 mm² screwless terminals), mini hat profile rail, mounting instructions and fastening set- Identification plates for connected consumers- 8 elastic cable entries Ø20 mm for cable diameters of 0–17 mm- 1 elastic cable entry Ø25 mm for cable diameters of 0–22 m

Automation > Small distribution board
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Distribution box 12 disp PC is a polycarbonate consumer unit manufactured by Obo Bettermann under the part number SDB 12 PC. Such enclosures are deployed in harsh commercial settings to house protective switching devices while withstanding physical impacts and environmental exposure.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 6,4826 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Cover type: Cover
  • Dimension: 286x202x125
  • DIN rail: yes
  • EMC version: no
  • Extension option: yes
  • Height: 126 mm
  • Length: 286 mm
  • Material: Polycarbonate
  • Mounting type, consumer units: Structure
  • Nominal current: 63 A
  • Nominal voltage: 400 V
  • Number of rows: 1
  • Protection rating: IP66
  • Protection rating IK code: IK08

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate6,4826 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Cover typeCover
Dimension286x202x125
DIN railyes
EMC versionno
Extension optionyes
Height126 mm
Length286 mm
MaterialPolycarbonate
Mounting type, consumer unitsStructure
Nominal current63 A
Nominal voltage400 V
Number of rows1
Protection ratingIP66
Protection rating IK codeIK08
TerminalsConnector
Transparent lidyes
Version, small distributor coverWith cut-out
Width202 mm
Width in divisional units12
With lockno
With mounting plateno
