View larger
Images are for illustrative purposes only. Please refer to data sheet for details

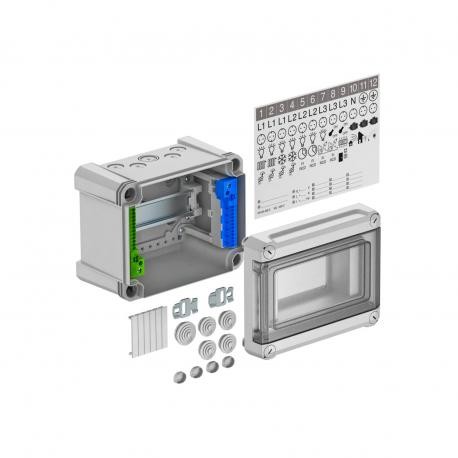

2008844 OBO BETTERMANN DISTRIBUTION BOX 5 DISP PC
SDB 05 PC
2008844
OBO BETTERMANN
1 Pcs.
DISTRIBUTION BOX 5 DISP PC
Distribution box, 5 division units, with terminal strip, polycarbonate. Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK08 protection rating. Transparent cover to screw on, with cut-out.- Protection-insulated for a maximum of 5 division units- Terminal strip set consisting of: One each of: PE/N terminal (1x25 mm² and 1x16 mm² screw terminals, 2x4 mm² and 12x2.5 mm² screwless terminals), mini hat profile rail, mounting instructions and fastening set- Identification plates for connected consumers- 4 elastic cable entries Ø20 mm for cable diameters of 0–17 mm- 1 elastic cable entry Ø25 mm for cable diameters of 0–22 mm-
Automation > Small distribution board
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 3,8802 kg CO2e / 1 Piece |
|---|---|
| Colour | Light grey; RAL 7035 |
| Cover type | Cover |
| Dimension | 190x150x125 |
| DIN rail | yes |
| EMC version | no |
| Extension option | yes |
| Height | 126 mm |
| Length | 191 mm |
| Material | Polycarbonate |
| Mounting type, consumer units | Structure |
| Nominal current | 40 A |
| Nominal voltage | 400 V |
|---|---|
| Number of rows | 1 |
| Protection rating | IP66 |
| Protection rating IK code | IK08 |
| Terminals | Connector |
| Transparent lid | yes |
| Version, small distributor cover | With cut-out |
| Width | 151 mm |
| Width in divisional units | 5 |
| With lock | no |
| With mounting plate | no |
