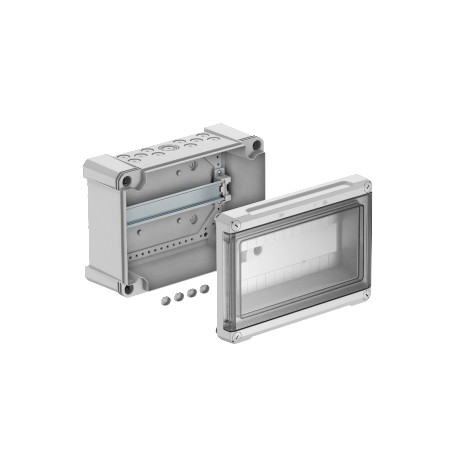

OBO BETTERMANN SDB 12L PS 2008832 OBO BETTERMANN BOX, DISTR.WITHOUT POWER STRIP,12 DISP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2008832 OBO BETTERMANN BOX, DISTR.WITHOUT POWER STRIP,12 DISP

SDB 12L PS

2008832

OBO BETTERMANN

1 Pcs.

BOX, DISTR.WITHOUT POWER STRIP,12 DISP Distribution box, 12 division units, empty, polystyrene. Distribution box for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.- Protection-insulated for a maximum of 12 division units- 11 Ø 20 mm break-out openings each at the top and bottom- 1 Ø 20/25/32 mm combination break-out opening each at the top and bottom- 4 screw cover capsNominal current 63 APower loss at 40 K 25.1 W

Automation > Small distribution board
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Box, distr.without power strip, 12 disp is a modular consumer unit enclosure produced by Obo Bettermann under the part number SDB 12L PS. Enclosures of this classification house miniature circuit breakers and modular DIN-rail equipment within commercial and residential electrical distribution layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 4,0312 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Cover type: Cover
  • Dimension: 286x202x125
  • DIN rail: yes
  • EMC version: no
  • Extension option: yes
  • Height: 126 mm
  • Length: 286 mm
  • Material: Polystyrene
  • Mounting type, consumer units: Structure
  • Nominal current: 63 A
  • Nominal voltage: 400 V
  • Number of rows: 1
  • Protection rating: IP66
  • Protection rating IK code: IK07.

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate4,0312 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Cover typeCover
Dimension286x202x125
DIN railyes
EMC versionno
Extension optionyes
Height126 mm
Length286 mm
MaterialPolystyrene
Mounting type, consumer unitsStructure
Nominal current63 A
Nominal voltage400 V
Number of rows1
Protection ratingIP66
Protection rating IK codeIK07.
Transparent lidyes
Version, small distributor coverWith cut-out
Width202 mm
Width in divisional units12
With lockno
With mounting plateno
