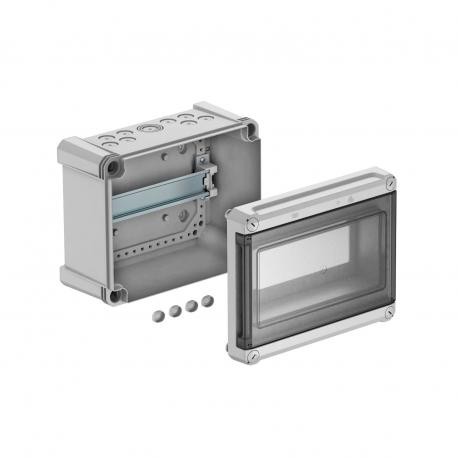

OBO BETTERMANN SDB 09L PS 2008828 OBO BETTERMANN BOX, DISTR.WITHOUT POWER STRIP,9 DISP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2008828 OBO BETTERMANN BOX, DISTR.WITHOUT POWER STRIP,9 DISP

SDB 09L PS

2008828

OBO BETTERMANN

1 Pcs.

BOX, DISTR.WITHOUT POWER STRIP,9 DISP Distribution box, 9 division units, empty, polystyrene. Distribution box for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.- Protection-insulated for a maximum of 9 division units- 8 Ø 20 mm break-out openings each at the top and bottom- 1 Ø 20/25/32 mm combination break-out opening each at the top and bottom- 4 screw cover capsNominal current 63 APower loss at 40 K 20.7 W

Automation > Small distribution board
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate3,3177 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Cover typeCover
Dimension240x191x125
DIN railyes
EMC versionno
Extension optionyes
Height126 mm
Length241 mm
MaterialPolystyrene
Mounting type, consumer unitsStructure
Nominal current63 A
Nominal voltage400 V
Number of rows1
Protection ratingIP66
Protection rating IK codeIK07.
Transparent lidyes
Version, small distributor coverWith cut-out
Width191 mm
Width in divisional units9
With lockno
With mounting plateno
