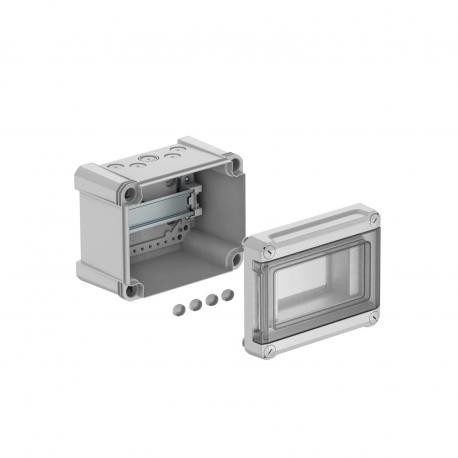

OBO BETTERMANN SDB 05L PS 2008824 OBO BETTERMANN BOX, DISTR.WITHOUT POWER STRIP,5 DISP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2008824 OBO BETTERMANN BOX, DISTR.WITHOUT POWER STRIP,5 DISP

SDB 05L PS

2008824

OBO BETTERMANN

1 Pcs.

BOX, DISTR.WITHOUT POWER STRIP,5 DISP Distribution box, 5 division units, empty, polystyrene. Distribution box for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.- Protection-insulated for a maximum of 5 division units- 4 Ø 20 mm break-out openings each at the top and bottom- 1 Ø 20/25 mm combination break-out opening each at the top and bottom- 4 screw cover capsNominal current 40 APower loss at 40 K 19 W

Automation > Small distribution board
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Box, distr.without power strip, 5 disp is a polystyrene distribution enclosure manufactured by Obo Bettermann with part number SDB 05L PS. These enclosures are standard additions to electrical installations for mounting modular control and protective equipment securely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 2,4299 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Cover type: Cover
  • Dimension: 190x150x125
  • DIN rail: yes
  • EMC version: no
  • Extension option: yes
  • Height: 126 mm
  • Length: 191 mm
  • Material: Polystyrene
  • Mounting type, consumer units: Structure
  • Nominal current: 40 A
  • Nominal voltage: 400 V
  • Number of rows: 1
  • Protection rating: IP66
  • Protection rating IK code: IK07.

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate2,4299 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Cover typeCover
Dimension190x150x125
DIN railyes
EMC versionno
Extension optionyes
Height126 mm
Length191 mm
MaterialPolystyrene
Mounting type, consumer unitsStructure
Nominal current40 A
Nominal voltage400 V
Number of rows1
Protection ratingIP66
Protection rating IK codeIK07.
Transparent lidyes
Version, small distributor coverWith cut-out
Width151 mm
Width in divisional units5
With lockno
With mounting plateno
