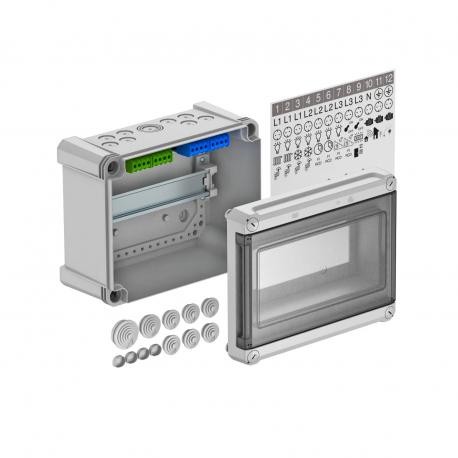

OBO BETTERMANN SDB 09 PS 2008808 OBO BETTERMANN DISTRIBUTION BOX 9 DISP PS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2008808 OBO BETTERMANN DISTRIBUTION BOX 9 DISP PS

SDB 09 PS

2008808

OBO BETTERMANN

1 Pcs.

DISTRIBUTION BOX 9 DISP PS Distribution box, 9 division units, with terminal strip, polystyrene. Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.- Protection-insulated for a maximum of 9 division units- Terminal strip set consisting of: Two each of: PE/N terminals with 4x 16 mm² screw terminals, mini hat profile rail, mounting instructions and fastening set- Identification plates for connected consumers- 6 elastic cable entries Ø20 mm for cable diameters of 0-17 mm- 1 elastic cable entry Ø25 mm for cable diameters of 0–22 mm- 1 elastic cable entry Ø32 mm for cable diam

Automation > Small distribution board
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Distribution box 9 disp PS is an electrical enclosure manufactured by Obo Bettermann bearing part number SDB 09 PS. These wall-mounted distribution enclosures provide mechanical protection and organizing space for modular circuit protection components.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 3,9546 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Cover type: Cover
  • Dimension: 240x191x125
  • DIN rail: yes
  • EMC version: no
  • Extension option: yes
  • Height: 126 mm
  • Length: 241 mm
  • Material: Polystyrene
  • Mounting type, consumer units: Structure
  • Nominal current: 63 A
  • Nominal voltage: 400 V
  • Number of rows: 1
  • Protection rating: IP66
  • Protection rating IK code: IK07.

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate3,9546 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Cover typeCover
Dimension240x191x125
DIN railyes
EMC versionno
Extension optionyes
Height126 mm
Length241 mm
MaterialPolystyrene
Mounting type, consumer unitsStructure
Nominal current63 A
Nominal voltage400 V
Number of rows1
Protection ratingIP66
Protection rating IK codeIK07.
TerminalsConnector
Transparent lidyes
Version, small distributor coverWith cut-out
Width191 mm
Width in divisional units9
With lockno
With mounting plateno
