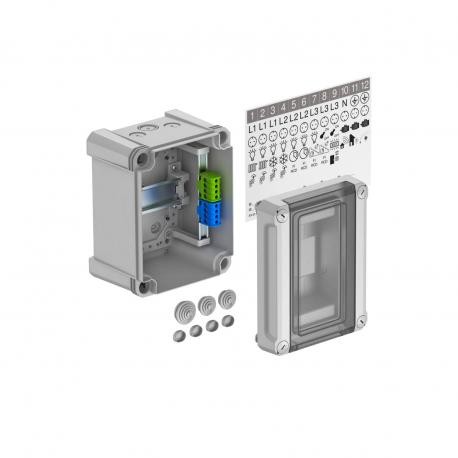

OBO BETTERMANN SDB 03 PS 2008800 OBO BETTERMANN DISTRIBUTION BOX 3 DISP PS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2008800 OBO BETTERMANN DISTRIBUTION BOX 3 DISP PS

SDB 03 PS

2008800

OBO BETTERMANN

1 Pcs.

DISTRIBUTION BOX 3 DISP PS Distribution box, 3 division units, with terminal strip, polystyrene. Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.- Protection-insulated for a maximum of 3 division units- Terminal strip set consisting of: One each of: PE/N terminal with 4x 16 mm² screw terminals, mini hat profile rail, mounting instructions and fastening set- Identification plates for connected consumers- 2 elastic cable entries Ø20 mm for cable diameters of 0–17 mm- 1 elastic cable entry Ø25 mm for cable diameters of 0–22 mm- 2 Ø 20 mm break-out openings each at the top

Automation > Small distribution board
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Distribution box 3 disp PS is an electrical distribution enclosure manufactured by Obo Bettermann with part number SDB 03 PS. Small-scale consumer units of this design are used to house compact breaker assemblies near machine tools or specific facility zones.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 2,8026 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Cover type: Cover
  • Dimension: 150x190x125
  • DIN rail: yes
  • EMC version: no
  • Extension option: yes
  • Height: 126 mm
  • Length: 191 mm
  • Material: Polystyrene
  • Mounting type, consumer units: Structure
  • Nominal current: 40 A
  • Nominal voltage: 400 V
  • Number of rows: 1
  • Protection rating: IP66
  • Protection rating IK code: IK07.

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate2,8026 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Cover typeCover
Dimension150x190x125
DIN railyes
EMC versionno
Extension optionyes
Height126 mm
Length191 mm
MaterialPolystyrene
Mounting type, consumer unitsStructure
Nominal current40 A
Nominal voltage400 V
Number of rows1
Protection ratingIP66
Protection rating IK codeIK07.
TerminalsConnector
Transparent lidyes
Version, small distributor coverWith cut-out
Width151 mm
Width in divisional units3
With lockno
With mounting plateno
