View larger
Images are for illustrative purposes only. Please refer to data sheet for details

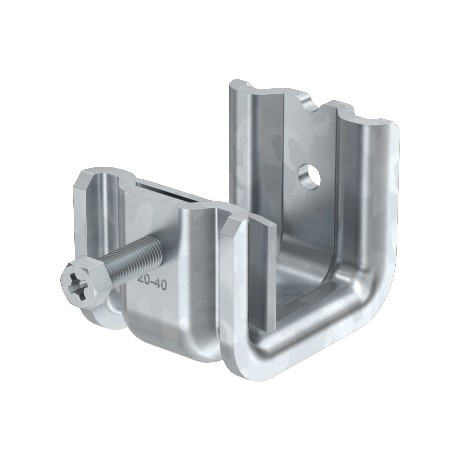

SSP 20-40 M8 A4 1486294 OBO BETTERMANN FIXING TO BEAM SSP 20-40 M8 V4A
SSP 20-40 M8 A4
1486294
OBO BETTERMANN
25 Pcs.
FIXING TO BEAM SSP 20-40 M8 V4A
Beam fastening SSP 20-40 M8 A4 reinforced version 20-40mm Stainless steel 1.4404, V4A, 1.4404 Polished, with post-treatment
Automation > Fixing clamp
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
This type of beam clamp is pushed onto the support and fixed to the girder or flat iron using a pressure trough and bolt (M8). The hexagonal bolt has a WAF of 10 mm In the clip element, two additional M6 threads are also incorporated, to fix threaded rods, for example.
