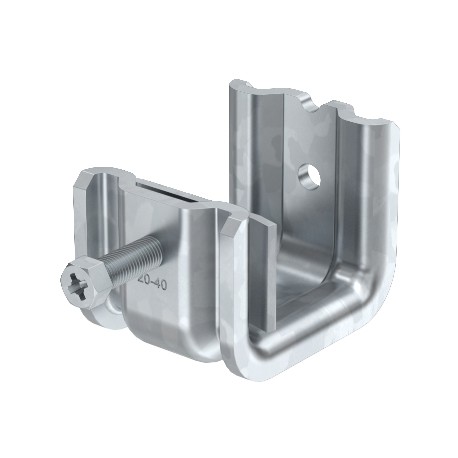

1486292 OBO BETTERMANN FIXING TO BEAM SSP 20-40 M8 V2A
SSP 20-40 M8 A2
1486292
OBO BETTERMANN
25 Pcs.
Automation > Fixing clamp
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This product is an Obo Bettermann fixing to beam SSP 20-40 M8 A2 used for establishing dependable structural suspension points on heavy beams. Beam clamps provide stable attachment interfaces for hanging conduits, cable routing systems, and lighting fixtures directly from industrial steel framing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breaking load F1: 1,4 kN
- Breaking load F2: 1,3 kN
- CO2 Footprint (GWP) Cradle-to-Gate: 1,3105 kg CO2e / 1 Piece
- Connection type/component: Thread
- Dimension: 20-40mm
- Dimension B: 48 mm
- Dimension H: 65 mm
- Dimension L: 47 mm
- Fastening type: Clamp
- Flange thickness F max.: 40 mm
- Flange thickness F min.: 20 mm
- Hinge, adjustable: no
- Hinged: no
- Material: Stainless steel 1.4301
- Suitable for metric threaded rod: 8
- Surface: Bright, treated
More info
▲| Breaking load F1 | 1,4 kN |
|---|---|
| Breaking load F2 | 1,3 kN |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,3105 kg CO2e / 1 Piece |
| Connection type/component | Thread |
| Dimension | 20-40mm |
| Dimension B | 48 mm |
| Dimension H | 65 mm |
| Dimension L | 47 mm |
| Fastening type | Clamp |
| Flange thickness F max. | 40 mm |
|---|---|
| Flange thickness F min. | 20 mm |
| Hinge, adjustable | no |
| Hinged | no |
| Material | Stainless steel 1.4301 |
| Suitable for metric threaded rod | 8 |
| Surface | Bright, treated |
| Thread | M8 |
| Thread metric | 8 |
