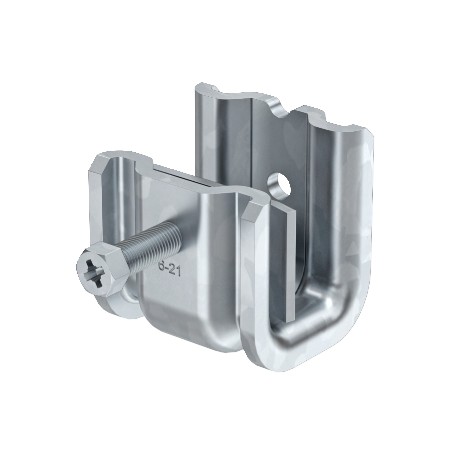

1486286 OBO BETTERMANN FIXING TO BEAM SSP 6-21 M8 V4A
SSP 6-21 M8 A4
1486286
OBO BETTERMANN
25 Pcs.
FIXING TO BEAM SSP 6-21 M8 V4A
Beam clamp SSP 6-21, VA M8. This type of support clamp is pushed onto the support and fixed to the girder or flat iron using a pressure trough and bolt (M8).The hexagonal bolt has a WAF of 10 mm.In the clip element also two more M8 threads are introduced, for example to attach threaded rods.
Automation > Fixing clamp
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Breaking load F1 | 1,75 kN |
|---|---|
| Breaking load F2 | 1,5 kN |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,153 kg CO2e / 1 Piece |
| Connection type/component | Thread |
| Dimension | 6-21mm |
| Dimension B | 48 mm |
| Dimension H | 46 mm |
| Dimension L | 47 mm |
| Fastening type | Clamp |
| Flange thickness F max. | 21 mm |
|---|---|
| Flange thickness F min. | 6 mm |
| Hinge, adjustable | no |
| Hinged | no |
| Material | Stainless steel 1.4404 |
| Suitable for metric threaded rod | 8 |
| Surface | Bright, treated |
| Thread | M8 |
| Thread metric | 8 |
