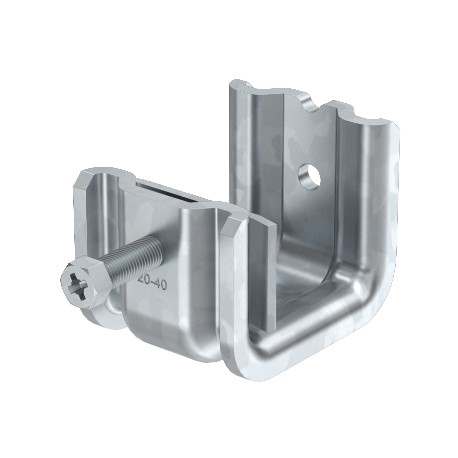

SSP 20-40 M6 A4 1486244 OBO BETTERMANN FIXING TO BEAM SSP 20-40 M6 V4A
SSP 20-40 M6 A4
1486244
OBO BETTERMANN
25 Pcs.
FIXING TO BEAM SSP 20-40 M6 V4A
Fixing to beam SSP 20-40 M6 A4 reinforced version 20-40mm Stainless steel 1.4404, V4A, 1.4404 Polished, with post-treatment
Automation > Fixing clamp
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteMore info
▲
This type of beam clamp is pushed onto the support and fixed to the girder or flat iron using a pressure trough and bolt (M8). The hexagonal bolt has a WAF of 10 mm In the clip element, two additional M6 threads are also incorporated, to fix threaded rods, for example.
