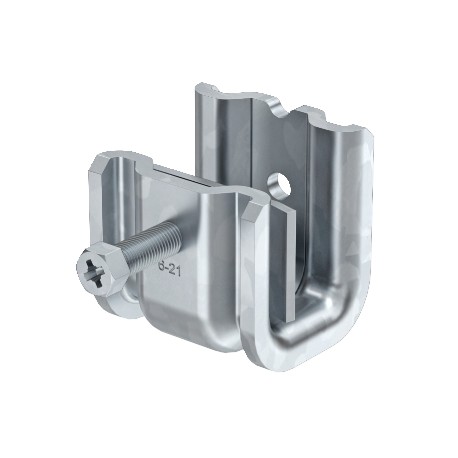

1486236 OBO BETTERMANN FIXING TO BEAM SSP 6-21 M6 V4A
SSP 6-21 M6 A4
1486236
OBO BETTERMANN
25 Pcs.
Automation > Fixing clamp
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This is an Obo Bettermann fixing to beam SSP 6-21 M6 A4 utilized for establishing stable mounting points on structural steel frameworks. Industrial beam fixtures allow secure overhead suspension of electrical systems, cable routes, and support rods in corrosive environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breaking load F1: 1,75 kN
- Breaking load F2: 1,5 kN
- CO2 Footprint (GWP) Cradle-to-Gate: 1,1374 kg CO2e / 1 Piece
- Connection type/component: Thread
- Dimension: 6-21mm
- Dimension B: 48 mm
- Dimension H: 46 mm
- Dimension L: 47 mm
- Fastening type: Clamp
- Flange thickness F max.: 21 mm
- Flange thickness F min.: 6 mm
- Hinge, adjustable: no
- Hinged: no
- Material: Stainless steel 1.4404
- Suitable for metric threaded rod: 6
- Surface: Bright, treated
More info
▲| Breaking load F1 | 1,75 kN |
|---|---|
| Breaking load F2 | 1,5 kN |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,1374 kg CO2e / 1 Piece |
| Connection type/component | Thread |
| Dimension | 6-21mm |
| Dimension B | 48 mm |
| Dimension H | 46 mm |
| Dimension L | 47 mm |
| Fastening type | Clamp |
| Flange thickness F max. | 21 mm |
|---|---|
| Flange thickness F min. | 6 mm |
| Hinge, adjustable | no |
| Hinged | no |
| Material | Stainless steel 1.4404 |
| Suitable for metric threaded rod | 6 |
| Surface | Bright, treated |
| Thread | M8 |
| Thread metric | 8 |
