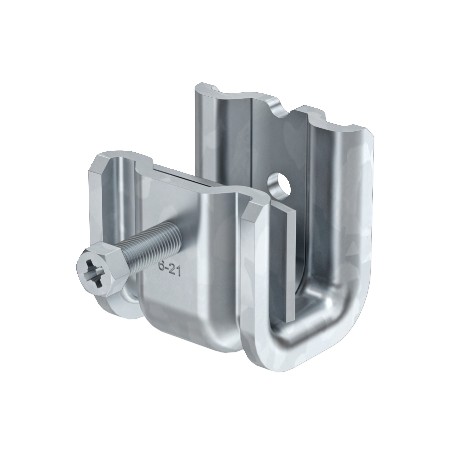

1486234 OBO BETTERMANN FIXING TO BEAM SSP 6-21 M6 V2A
SSP 6-21 M6 A2
1486234
OBO BETTERMANN
25 Pcs.
Automation > Fixing clamp
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This is an Obo Bettermann fixing to beam SSP 6-21 M6 A2 designed for secure mechanical anchoring to structural supports in industrial installations. Such hardware components are commonly deployed in overhead suspension systems to anchor threaded rods, cable tray runs, and electrical routing infrastructure without requiring on-site drilling or welding. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breaking load F1: 1,75 kN
- Breaking load F2: 1,5 kN
- CO2 Footprint (GWP) Cradle-to-Gate: 1,1495 kg CO2e / 1 Piece
- Connection type/component: Thread
- Dimension: 6-21mm
- Dimension B: 48 mm
- Dimension H: 46 mm
- Dimension L: 47 mm
- Fastening type: Clamp
- Flange thickness F max.: 21 mm
- Flange thickness F min.: 6 mm
- Hinge, adjustable: no
- Hinged: no
- Material: Stainless steel
- Suitable for metric threaded rod: 6
- Surface: Bright, treated
More info
▲| Breaking load F1 | 1,75 kN |
|---|---|
| Breaking load F2 | 1,5 kN |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,1495 kg CO2e / 1 Piece |
| Connection type/component | Thread |
| Dimension | 6-21mm |
| Dimension B | 48 mm |
| Dimension H | 46 mm |
| Dimension L | 47 mm |
| Fastening type | Clamp |
| Flange thickness F max. | 21 mm |
|---|---|
| Flange thickness F min. | 6 mm |
| Hinge, adjustable | no |
| Hinged | no |
| Material | Stainless steel |
| Suitable for metric threaded rod | 6 |
| Surface | Bright, treated |
| Thread | M8 |
| Thread metric | 8 |
