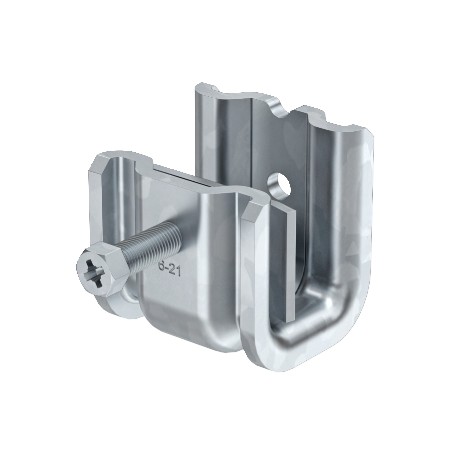

1486232 OBO BETTERMANN FIXING TO BEAM SSP 6-21 M6 FT
SSP 6-21 M6 FT
1486232
OBO BETTERMANN
25 Pcs.
FIXING TO BEAM SSP 6-21 M6 FT
Beam clamp SSP 6-21, FT M6. This type of beam clamp is pushed onto the support and fixed to the girder or flat iron using a pressure trough and bolt (M8). The hexagonal bolt has a WAF of 10 mm. In the clip element, two additional M6 threads are also incorporated, to fix threaded rods, for example.
Automation > Fixing clamp
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Breaking load F1 | 1,75 kN |
|---|---|
| Breaking load F2 | 1,5 kN |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4987 kg CO2e / 1 Piece |
| Connection type/component | Thread |
| Dimension | 6-21mm |
| Dimension B | 48 mm |
| Dimension H | 46 mm |
| Dimension L | 47 mm |
| Fastening type | Clamp |
| Flange thickness F max. | 21 mm |
|---|---|
| Flange thickness F min. | 6 mm |
| Hinge, adjustable | no |
| Hinged | no |
| Material | Steel |
| Suitable for metric threaded rod | 6 |
| Surface | Hot-dip galvanised |
| Thread | M8 |
| Thread metric | 8 |
