View larger
Images are for illustrative purposes only. Please refer to data sheet for details

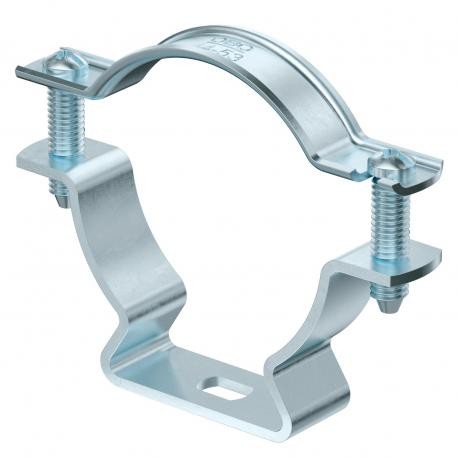

1362784 OBO BETTERMANN Distance saddle with slot
ASL 733 53 G
1362784
OBO BETTERMANN
20 Pcs.
Distance saddle with slot
Spacer clip 733 G. Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
Automation > DC-power supply
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Clamping range D, max. | 53 mm |
|---|---|
| Clamping range D, min. | 44 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1683 kg CO2e / 1 Piece |
| Dimension | 44-53mm |
| Dimension A | 84 mm |
| Dimension b | 16 mm |
| Dimension B | 70 mm |
| Dimension D | 53 mm |
| Dimension d max. | 53 mm |
| Dimension d min. | 44 mm |
| Dimension L | 10 mm |
| Dimension s | 29,5 mm |
| Dimension t1 (mm) | 1,5 |
| Dimension t2 (mm) | 2 |
| Dimension x | 13,5 mm |
|---|---|
| Distance to the wall | yes |
| Fastening type | Screw hole |
| For diameter | 44 - 53 |
| Halogen-free | yes |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 1,5 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Surface | Electrogalvanized |
| UV-resistant | yes |
| Version for | Closed |
