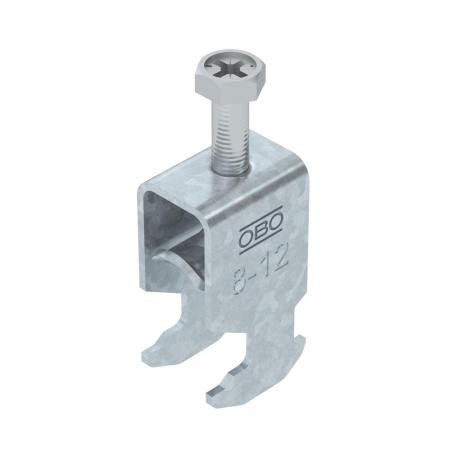

OBO BETTERMANN BS-H1-M-12 FT BS-H1-M-12 FT 1186002 OBO BETTERMANN Clamp on profile 2056 BS-H1-M-12 FT Zinc die casting, Zn Steel, St Hot .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BS-H1-M-12 FT 1186002 OBO BETTERMANN Clamp on profile 2056 BS-H1-M-12 FT Zinc die casting, Zn Steel, St Hot ..

BS-H1-M-12 FT

1186002

OBO BETTERMANN

100 Pcs.

Clamp on profile 2056 BS-H1-M-12 FT Zinc die casting, Zn Steel, St Hot dipped galvanized, DIN EN ISO 1461 BS-H1-M-12 FT, Clamp on profile 2056, 08-12mm, St, FT Clamp clip 2056 H-foot, 1-fold, metal pressure sleeve, FT. Clamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. The counter-sleeve must be ordered separately.

Cables > One-piece strut clamp
Clamps BSS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Compact utility characterizes the Obo Bettermann BS-H1-M-12 FT clamp on profile, built for fastening small-diameter conduits securely. These steel components offer dependable mechanical support for delicate sensor and control wiring layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Chucking range (EF002391): 8 mm
  • For pipe size metric (M..) (EF004713): 12
  • Max. number of cables (EF001052): 1
  • Material clamp (EF006530): Steel
  • Surface protection clamp (EF005142): Hot dip galvanized
  • Material shell (EF014679): Steel
  • Surface protection shell (EF014680): Hot dip galvanized
  • Material screw (EF006529): Steel
  • Surface protection screw (EF005143): Hot dip galvanized
  • With counter shell (EF014681): No
  • Mounting method (EF000003): Profile rail
  • Halogen free (EF000025): Yes

More info

▲
Clamping range D, max.12 mm
Clamping range D, min.8 mm
CO2 Footprint (GWP) Cradle-to-Gate0,0877 kg CO2e / 1 Piece
Dimension08-12mm
Dimension A22,5 mm
Dimension B17 mm
Dimension C28 mm
Dimension G (mm)M6
Dimension H42 mm
Dimension L34 mm
Dimension t1,5 mm
For pipe diameter, max.12 mm
For pipe diameter, min.8 mm
for rail with slot width (with interval), max.17 mm
for rail with slot width (with interval), min.16 mm
Halogen-freeyes
Height42 mm
Length22,5 mm
Length of external dimensions28 mm
Maintain electrical functionsyes
MaterialSteel
Material additionSteel
Material of troughSteel
Max. Tightening torque3 Nm
Mounting typeProfile rail
Number of cables/pipes1
Plate thickness1,5 mm
Slot width10 mm
SurfaceHot-dip galvanised
Surface additionhot galvanised
ThreadM6
Width17 mm
With counter-troughno
With metal troughyes
With plastic troughno
