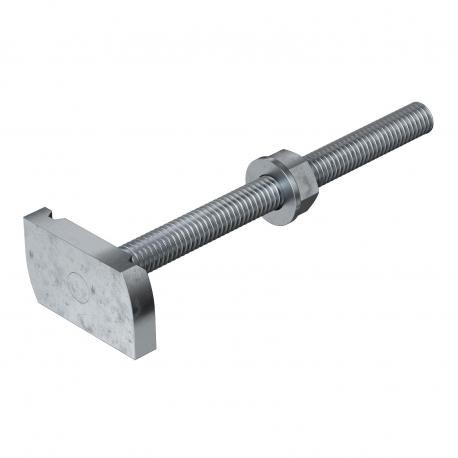

OBO BETTERMANN MS41HB M8x100 ZL 1148318 OBO BETTERMANN SCREW C/CBZ HOOK MS4121/4141 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1148318 OBO BETTERMANN SCREW C/CBZ HOOK MS4121/4141

MS41HB M8x100 ZL

1148318

OBO BETTERMANN

20 Pcs.

SCREW C/CBZ HOOK MS4121/4141 Hammer-head bolt ZL. Hammer-head bolt for use with MS4121 and MS4141 profile rails

Automation > T-head bolt
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann hook screw, model MS41HB M8x100 ZL, facilitates dependable clamping attachments within industrial framing profiles and support channels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,2041 kg CO2e / 1 Piece
  • Dimension: M8x100mm
  • Dimension H: 6 mm
  • Dimension L: 100 mm
  • Height: 6 mm
  • Length: 34,5 mm
  • Material: Steel
  • Suitable for mounting rail: yes
  • Surface: Zinc slat
  • Thread: M 8 x 100
  • Torque: 8 Nm
  • Washer Ø: 16 mm
  • Width: 20 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,2041 kg CO2e / 1 Piece
DimensionM8x100mm
Dimension H6 mm
Dimension L100 mm
Height6 mm
Length34,5 mm
MaterialSteel
Suitable for mounting railyes
SurfaceZinc slat
ThreadM 8 x 100
Torque8 Nm
Washer Ø16 mm
Width20 mm
