1148122 OBO BETTERMANN SCREW C/CBZ HOOK PERF MS4022
MS40HB M10x60 ZL
1148122
OBO BETTERMANN
25 Pcs.
SCREW C/CBZ HOOK PERF MS4022

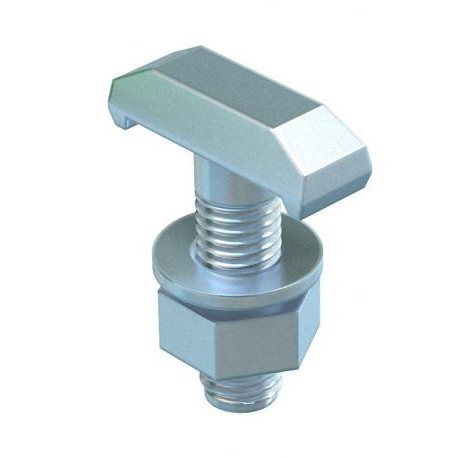

Hook-head screw ZL. Hook-head screw for use with MS4022 profile rail
Automation > T-head bolt
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann hook screw, part number MS40HB M10x60 ZL, is engineered to establish secure mechanical anchoring points inside specialized installation channels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,2034 kg CO2e / 1 Piece
- Dimension: M10x60mm
- Height: 7,5 mm
- Length: 35 mm
- Material: Steel
- Suitable for mounting rail: yes
- Surface: Zinc slat
- Thread: M10x60mm
- Thread metric: 10
- Torque: 16,1 Nm
- Width: 14 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,2034 kg CO2e / 1 Piece |
|---|---|
| Dimension | M10x60mm |
| Height | 7,5 mm |
| Length | 35 mm |
| Material | Steel |
| Suitable for mounting rail | yes |
| Surface | Zinc slat |
|---|---|
| Thread | M10x60mm |
| Thread metric | 10 |
| Torque | 16,1 Nm |
| Width | 14 mm |
