OBO BETTERMANN MS41SNF M6 A4 1147336 OBO BETTERMANN NUT DES C/DOCK MS4121/4141 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1147336 OBO BETTERMANN NUT DES C/DOCK MS4121/4141

MS41SNF M6 A4

1147336

OBO BETTERMANN

50 Pcs.

NUT DES C/DOCK MS4121/4141 Slide nut with spring A4. Slide nut with spring for use with MS4121 und MS4141 profile rails

Automation > Slide nut
VBS Connection and fastening systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

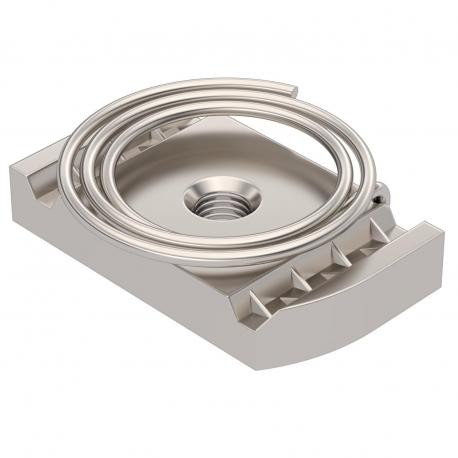

Obo Bettermann MS41SNF M6 A4 is a stainless steel channel nut equipped with a retaining spring to hold the fastener firmly in place inside vertical or overhead mounting rails during installation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1547 kg CO2e / 1 Piece
  • Dimension: M6
  • Dimension H: 6 mm
  • Height: 6 mm
  • Length: 35 mm
  • Material: Stainless steel
  • Surface: Bright, treated
  • Thread: M6
  • Thread metric: 6
  • Width: 20 mm
  • With spring: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,1547 kg CO2e / 1 Piece
DimensionM6
Dimension H6 mm
Height6 mm
Length35 mm
MaterialStainless steel
SurfaceBright, treated
ThreadM6
Thread metric6
Width20 mm
With springyes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
