View larger
Images are for illustrative purposes only. Please refer to data sheet for details

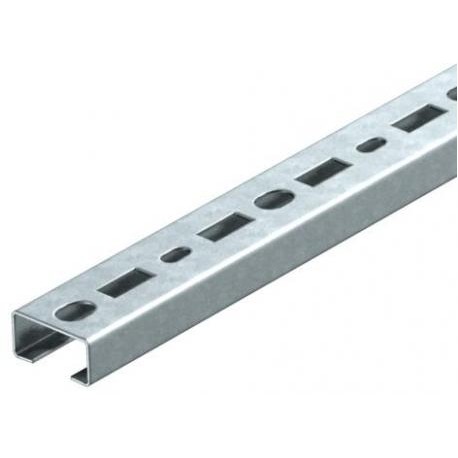

1104570 OBO BETTERMANN PROFILE PERFORATED CML3518P2000FT
CML3518P2000FT
1104570
OBO BETTERMANN
20 m.
PROFILE PERFORATED CML3518P2000FT
CML3518 profile rail, slot 17 mm, FT, perforated. Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
Automation > Mounting rail/-profile
VBS Connection and fastening systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 1,7304 kg CO2e / 1 Meter |
| Dimension | 2000x35x18 |
| Dimension L | 2000 mm |
| Height | 18 mm |
| Length | 2000 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 1,25 mm |
| Profile shape | C profile |
| Rustproof steel, pickled | no |
| Slot width | 17 mm |
| Static value A | 0,88 cm² |
|---|---|
| Static value ly | 0,41 cm⁴ |
| Static value lz | 1,81 cm⁴ |
| Static value Wy | 0,41 cm³ |
| Static value Wz | 1,03 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 35 mm |
| With perforation | yes |
| With toothing | no |
