View larger
Images are for illustrative purposes only. Please refer to data sheet for details

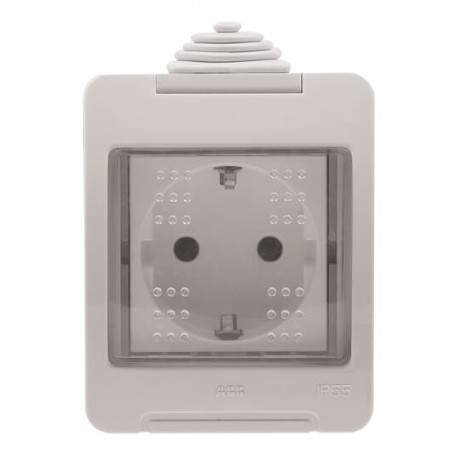

2CLA328800N1101 N3288 NIESSEN Caja estanca IP55 Zenit Schuko
2CLA328800N1101
N3288
NIESSEN
10 Pcs.
Caja estanca IP55 Zenit Schuko
IP55 waterproof enclosure Zenit Schuko
Socket outlet insert/cover Protective contact (SCHUKO) Without imprint Hinged Lid Grey - Zenit Waterproof
Automation > Socket outlet
Waterproof boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX210109N1001 |
| Mounting Type | Surface mounted |
| Type of Fastening | Mounting with Screw |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP55 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Number of Phases | 2-phase |
| Number of Active Pin Terminals | 0 |
| Connection Type | Screw Clamp |
| Socket Outlet Type | Protective Contact (SCHUKO) |
| Protection Cap Type | Hinged Lid |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 16 A |
| Frequency (f) | 50 … 60 Hz |
| Power Supply Type | External |
| Design | |
| Design Range | Zenit Waterproof |
| Surface Finishing | Untreated |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Without imprint |
| Label Space Provided | Without Label Space |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Number of Gangs | 1-gang |
| Number of Modules | 2 |
| Dimensions | |
| Product Net Width | 90 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63 mm |
| Product Net Weight | 142 g |
| Ordering | |
| Replaced Product ID (OLD) | 2CL0N328801 |
| Material Compliance | |
| RoHS Declaration | 2CLC328800N1101 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230816 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | bbe52d3b-65d9-4de1-9ee2-832adb377b51 Spain |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000125 - Socket outlet |
| ETIM 10 | EC000125 - Socket outlet |
| UNSPSC | 39121305 |
