View larger
Images are for illustrative purposes only. Please refer to data sheet for details

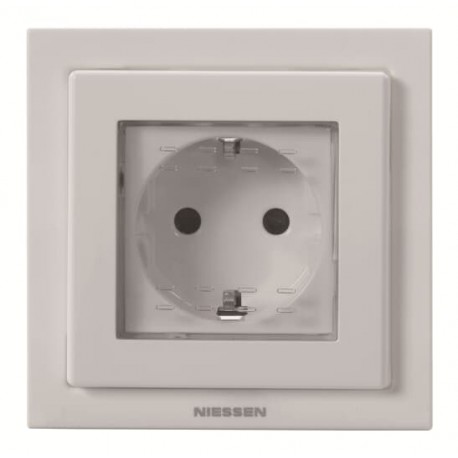

2CLA308800N1101 N3088 BL NIESSEN B.Schuko IP55 empotrar Zenit BL
2CLA308800N1101
N3088 BL
NIESSEN
10 Pcs.
B.Schuko IP55 empotrar Zenit BL
B.Schuko IP55 recessed Zenit BL
Socket outlet insert/cover Protective contact (SCHUKO) Without imprint Hinged Lid White - Zenit Waterproof
Automation > Socket outlet
Waterproof boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX210109N1001 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Mounting with Screw |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP55 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Number of Phases | 2-phase |
| Number of Active Pin Terminals | 0 |
| Connection Type | Screw Clamp |
| Socket Outlet Type | Protective Contact (SCHUKO) |
| Number of Batteries | 0 |
| Protection Cap Type | Hinged Lid |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 16 A |
| Frequency (f) | 50 … 60 Hz |
| Power Supply Type | External |
| Design | |
| Design Range | Zenit Waterproof |
| Surface Finishing | Untreated |
| Glossy | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Without imprint |
| Label Space Provided | Without Label Space |
| RAL Number | RAL 9010 - Pure White |
| Color | White |
| Number of Gangs | 1-gang |
| Number of Modules | 2 |
| Dimensions | |
| Product Net Width | 90 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 122 g |
| Ordering | |
| Replaced Product ID (OLD) | 2CL0N308801 |
| Material Compliance | |
| RoHS Declaration | 2CLC308800N1101 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 6af23dae-20f3-49d5-aa12-283d6c81df2c Spain |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107046A9871 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000125 - Socket outlet |
| ETIM 10 | EC000125 - Socket outlet |
