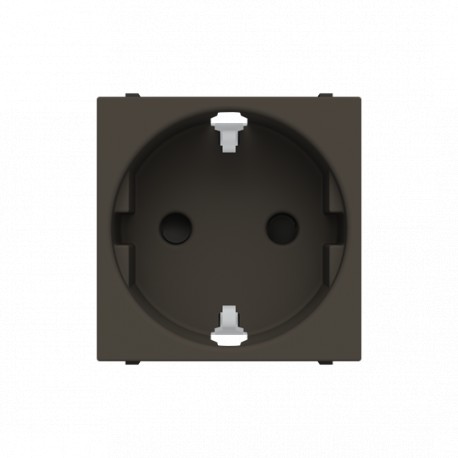

2CLA228860N1801 N2288.6 AN NIESSEN Base Schuko automatico pr. inf. AN
2CLA228860N1801
N2288.6 AN
NIESSEN
10 Pcs.
Automation > Socket outlet
Zenit Noble
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An automatic Schuko socket outlet (part number 2CLA228860N1801 by Niessen) supplies dependable mains electricity for electrical appliances and portable equipment within standard wall installations.
This type of protective contact socket securely interfaces plugs with building circuits to distribute commercial or domestic electrical power safely.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2CLX210109N1001
- Mounting Type: Flush-mounted
- Type of Fastening: Engage (Snap)
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK10103A5108
- Number of Phases: 2-phase
- Number of Active Pin Terminals: 0
- Connection Type: Screw Clamp
- Socket Outlet Type: Protective Contact (SCHUKO)
- Number of Batteries: 0
- Rated Voltage (U r ): 250 V
- Rated Current (I n ): 16 A
- Frequency ( f ): 50 … 60 Hz
- Power Supply Type: External
- Design Range: Zenit
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX210109N1001 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Engage (Snap) |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Number of Phases | 2-phase |
| Number of Active Pin Terminals | 0 |
| Connection Type | Screw Clamp |
| Socket Outlet Type | Protective Contact (SCHUKO) |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 16 A |
| Frequency (f) | 50 … 60 Hz |
| Power Supply Type | External |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Without imprint |
| Label Space Provided | Without Label Space |
| Color | Anthracite |
| Number of Gangs | 1-gang |
| Number of Modules | 2 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Height | 44 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 46 g |
| Ordering | |
| Replaced Product ID (OLD) | 2CLA228860N1802 |
| ABB EcoSolutions | |
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Ecodesign | 9AKK108468A3800 |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard - 92 % |
| Environmental Product Declaration - EPD | 9AKK108468A7774 |
| Material Compliance | |
| RoHS Declaration | 2CLC228860N1801 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107046A9871 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000125 - Socket outlet |
| ETIM 10 | EC000125 - Socket outlet |
