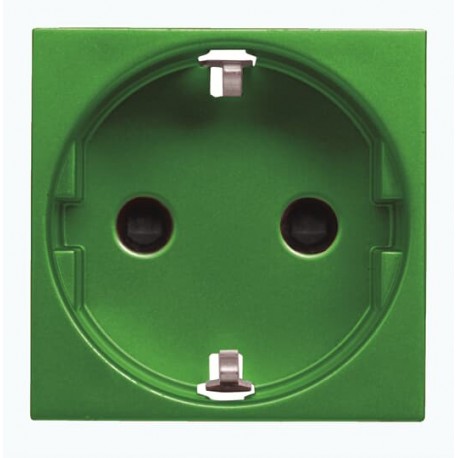

2CLA228800N8001 N2288 VD NIESSEN Base enchufe 2P+T Schuko especial VD
2CLA228800N8001
N2288 VD
NIESSEN
5 Pcs.
Automation > Socket outlet
Complete mechanism
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing dependable power delivery, the 2CLA228800N8001 N2288 VD NIESSEN Base enchufe 2P+T Schuko especial VD serves as a standard flush-mounted socket outlet for electrical distribution networks. Units of this type safely link appliances and machinery to facility power feeds.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 9AKK10103A5108
- Mounting Type: Flush-mounted
- Type of Fastening: Engage (Snap)
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK10103A5108
- Number of Phases: 2-phase
- Connection Type: Screw Clamp
- Socket Outlet Type: Protective Contact (SCHUKO)
- Number of Batteries: 0
- Rated Voltage (U r ): 250 V
- Rated Current (I n ): 16 A
- Frequency ( f ): 50 … 60 Hz
- Power Supply Type: External
- Design Range: Zenit
- Surface Finishing: Untreated
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 9AKK10103A5108 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Engage (Snap) |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Number of Phases | 2-phase |
| Connection Type | Screw Clamp |
| Socket Outlet Type | Protective Contact (SCHUKO) |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 16 A |
| Frequency (f) | 50 … 60 Hz |
| Power Supply Type | External |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Untreated |
| Glossy | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Without imprint |
| Label Space Provided | Without Label Space |
| Color | Green |
| Number of Gangs | 1-gang |
| Number of Modules | 2 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Height | 44 mm |
| Product Net Depth / Length | 32 mm |
| Product Net Weight | 1 g |
| Ordering | |
| Replaced Product ID (OLD) | 2CLA228800N8002 |
| Material Compliance | |
| RoHS Declaration | 2CLC228800N8001 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230816 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 6371fc3c-0a42-42f7-af85-d0d81991d766 Spain |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107046A9871 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000125 - Socket outlet |
| ETIM 10 | EC000125 - Socket outlet |
| UNSPSC | 39121406 |
