View larger
Images are for illustrative purposes only. Please refer to data sheet for details

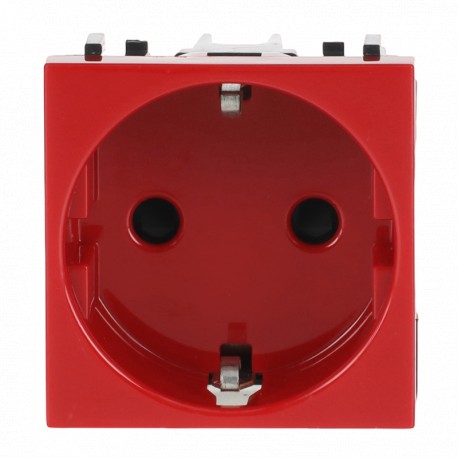

2CLA228800N7001 N2288 RJ NIESSEN Base enchufe 2P+T Schuko especial RJ
2CLA228800N7001
N2288 RJ
NIESSEN
5 Pcs.
Base enchufe 2P+T Schuko especial RJ
2P+T Schuko special RJ socket
Socket outlet insert/cover Without imprint Red - Zenit
Automation > Socket outlet
Complete mechanism
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 9AKK10103A5108 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Engage (Snap) |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Number of Phases | 2-phase |
| Connection Type | Screw Clamp |
| Socket Outlet Type | Protective Contact (SCHUKO) |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 16 A |
| Frequency (f) | 50 … 60 Hz |
| Power Supply Type | External |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Untreated |
| Glossy | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Without imprint |
| Label Space Provided | Without Label Space |
| Color | Red |
| Number of Gangs | 1-gang |
| Number of Modules | 2 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Height | 44 mm |
| Product Net Depth / Length | 32 mm |
| Product Net Weight | 1 g |
| Ordering | |
| Replaced Product ID (OLD) | 2CLA228800N7002 |
| Material Compliance | |
| RoHS Declaration | 2CLC228800N7001 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230816 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 4e9556ea-faad-4b92-93d9-e6fc4895eee1 Spain |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107046A9871 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000125 - Socket outlet |
| ETIM 10 | EC000125 - Socket outlet |
| UNSPSC | 39121406 |
