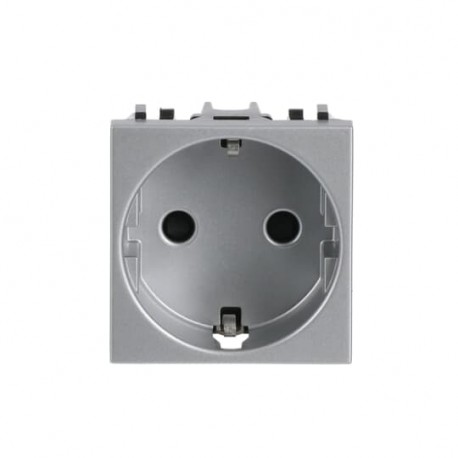

NIESSEN 2CLA228800N1301 2CLA228800N1301 N2288 PL NIESSEN Base enchufe 2P+T p. inf. PL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA228800N1301 N2288 PL NIESSEN Base enchufe 2P+T p. inf. PL

2CLA228800N1301

N2288 PL

NIESSEN

10 Pcs.

Base enchufe 2P+T p. inf. PL 2P+T socket for inf. PL Socket outlet insert/cover Protective contact (SCHUKO) Without imprint Silver - Zenit

Automation > Socket outlet
Narrow mechanism an

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A protective contact socket outlet, manufactured by Niessen under part 2CLA228800N1301, provides a secure electrical termination point for power circuits in building setups. Protective contact outlets standardly feed single-phase loads while safeguarding users against electrical hazards. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 2CLX210109N1001
  • Mounting Type: Flush-mounted
  • Type of Fastening: Engage (Snap)
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Data Sheet, Technical Information: 9AKK10103A5108
  • Number of Phases: 2-phase
  • Number of Active Pin Terminals: 0
  • Connection Type: Screw Clamp
  • Socket Outlet Type: Protective Contact (SCHUKO)
  • Accessories Available: Yes
  • Number of Batteries: 0
  • Rated Voltage (U r ): 250 V
  • Rated Current (I n ): 16 A
  • Frequency ( f ): 50 … 60 Hz
  • Power Supply Type: External

More info

▲
Installation
Instructions and Manuals2CLX210109N1001
Mounting TypeFlush-mounted
Type of FasteningEngage (Snap)
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information9AKK10103A5108
Number of Phases2-phase
Number of Active Pin Terminals0
Connection TypeScrew Clamp
Socket Outlet TypeProtective Contact (SCHUKO)
Accessories AvailableYes
Number of Batteries0
Electrical
Rated Voltage (Ur)250 V
Rated Current (In)16 A
Frequency (f)50 … 60 Hz
Power Supply TypeExternal
Design
Design RangeZenit
Surface FinishingDecor
Matt
MaterialPlastic
Thermoplastic
LegendWithout imprint
Label Space ProvidedWithout Label Space
ColorSilver
Number of Gangs1-gang
Number of Modules2
Dimensions
Product Net Width44 mm
Product Net Height44 mm
Product Net Depth / Length32 mm
Product Net Weight42 g
Ordering
Replaced Product ID (OLD)2CLA228800N1302
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Ecodesign9AKK108468A3800
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 92 %
Environmental Product Declaration - EPD9AKK108468A7775
Material Compliance
RoHS Declaration2CLC228800N1301
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration9AKK108467A7464
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230816
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
SCIPc2cb0d98-f45b-486a-8ad9-1987b4a9d60b Spain
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Certificates and Declarations
Declaration of Conformity - CE9AKK107046A9871
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000125 - Socket outlet
ETIM 10EC000125 - Socket outlet
UNSPSC39121406
