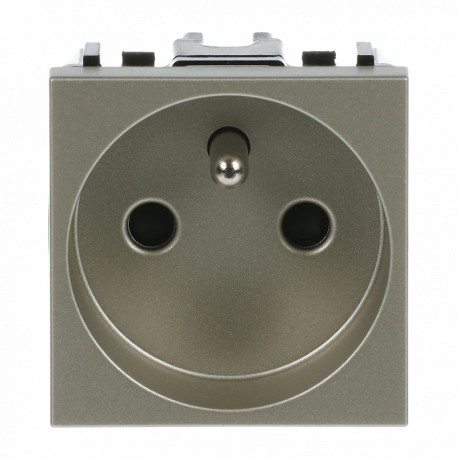

2CLA228700N1901 N2287 CV NIESSEN B.enchufe 2P+T frances pr.inf CV
2CLA228700N1901
N2287 CV
NIESSEN
10 Pcs.
Automation > Socket outlet
Flush-mounting series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Niessen B.enchufe 2P+T frances pr.inf CV (2CLA228700N1901) is a flush-mounted electrical socket designed to receive standard plugs in residential and commercial electrical networks. Such components ensure safe energy transfer from fixed wiring systems to electrical appliances.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2CLX210109N1001
- Mounting Type: Flush-mounted
- Type of Fastening: Engage (Snap)
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK10103A5108
- Number of Phases: 2-phase
- Connection Type: Screw Clamp
- Socket Outlet Type: Earthing Pin
- Number of Batteries: 0
- Rated Voltage (U r ): 250 V
- Rated Current (I n ): 16 A
- Frequency ( f ): 50 … 60 Hz
- Power Supply Type: External
- Design Range: Zenit
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX210109N1001 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Engage (Snap) |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Number of Phases | 2-phase |
| Number of Active Pin Terminals | 0 |
| Connection Type | Screw Clamp |
| Socket Outlet Type | Earthing Pin |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 16 A |
| Frequency (f) | 50 … 60 Hz |
| Power Supply Type | External |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Without imprint |
| Label Space Provided | Without Label Space |
| Color | Champagne |
| Number of Gangs | 1-gang |
| Number of Modules | 2 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Height | 44 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 51 g |
| Ordering | |
| Replaced Product ID (OLD) | 2CLA228700N1902 |
| ABB EcoSolutions | |
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Ecodesign | 9AKK108468A3800 |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard - 92 % |
| Extended Product Lifetime | Product Modularity |
| Environmental Product Declaration - EPD | 9AKK108468A7776 |
| Material Compliance | |
| RoHS Declaration | 2CLC228700N1901 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108469A7957 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240123 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | c7003b8c-042c-4420-8851-9a6c16920279 Spain |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107046A9871 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000125 - Socket outlet |
| ETIM 10 | EC000125 - Socket outlet |
