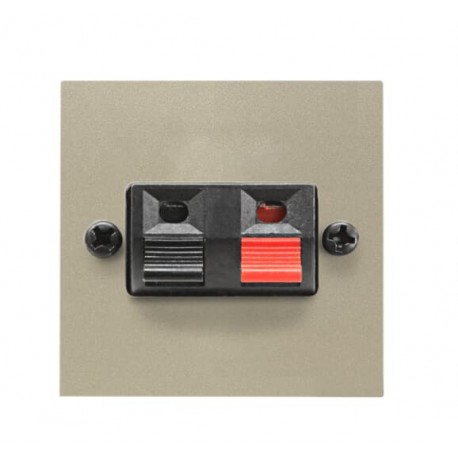

2CLA225710N1901 N2257.1 CV NIESSEN Toma altavoz por borna CV
2CLA225710N1901
N2257.1 CV
NIESSEN
1 Pcs.
Automation > Insert/cover for communication technology
Flush-mounting series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A loudspeaker connection socket provides secure terminal binding posts for audio wiring running between amplifiers and speaker systems. This Niessen 2CLA225710N1901 unit integrates into flush wall boxes to maintain clean audio signal distribution.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting Type: Flush-mounted
- Type of Fastening: Engage (Snap)
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK10103A5108
- Application: Loudspeaker connection
- Type of Indicator: Without indication field
- Outlet Orientation: Straight
- Design Range: Zenit
- Surface Finishing: Decor;Matt
- Material: Plastic;Thermoplastic
- Color: Champagne
- Number of Modules: 2
- Product Net Width: 44 mm
- Product Net Height: 44 mm
- Product Net Depth / Length: 31 mm
More info
▲| Installation | |
|---|---|
| Mounting Type | Flush-mounted |
| Type of Fastening | Engage (Snap) |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Application | Loudspeaker connection |
| Type of Indicator | Without indication field |
| Outlet Orientation | Straight |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Decor;Matt |
| Material | Plastic;Thermoplastic |
| Color | Champagne |
| Number of Modules | 2 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Height | 44 mm |
| Product Net Depth / Length | 31 mm |
| Product Net Weight | 37 g |
| Ordering | |
| Replaced Product ID (OLD) | 2CLA225710N1902 |
| Material Compliance | |
| RoHS Declaration | 2CLC225710N1901 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106930A1758 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000018 - Insert/cover for communication technology |
| ETIM 10 | EC000018 - Insert/cover for communication technology |
