2CLA225180N1901 N2251.8 CV NIESSEN Toma TV-R/SAT intermedia CV
2CLA225180N1901
N2251.8 CV
NIESSEN
10 Pcs.
Automation > Insert/cover for communication technology
Flush-mounting series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

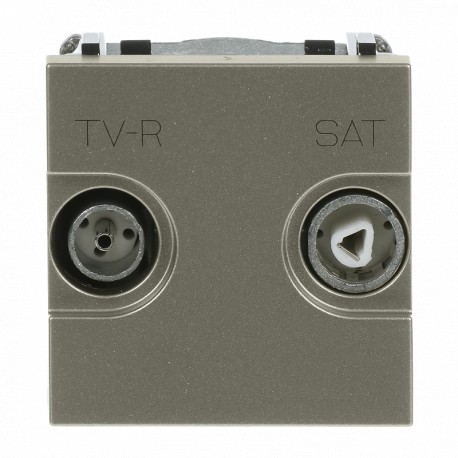

The 2CLA225180N1901 N2251.8 CV NIESSEN Toma TV-R/SAT intermedia CV produced by Niessen serves as an intermediate TV, radio, and satellite signal outlet designed to distribute broadcast frequencies along a shared cabling loop. Wall-mounted antenna sockets ensure clean signal termination and connection points for home entertainment systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2CLX210109N1001
- Mounting Type: Flush-mounted
- Type of Fastening: Engage (Snap)
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK10103A5108
- Application: Sat
- Type of Indicator: Without indication field
- Outlet Orientation: Straight
- Number of Batteries: 0
- Design Range: Zenit
- Surface Finishing: Decor;Matt
- Material: Plastic;Thermoplastic
- Color: Champagne
- Number of Modules: 2
- Product Net Width: 44 mm
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX210109N1001 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Engage (Snap) |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Application | Sat |
| Type of Indicator | Without indication field |
| Outlet Orientation | Straight |
| Number of Batteries | 0 |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Decor;Matt |
| Material | Plastic;Thermoplastic |
| Color | Champagne |
| Number of Modules | 2 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Height | 44 mm |
| Product Net Depth / Length | 31 mm |
| Product Net Weight | 78 g |
| Ordering | |
| Replaced Product ID (OLD) | 2CLA225180N1902 |
| Material Compliance | |
| RoHS Declaration | 2CLC225180N1901 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | d36e5f89-2cc2-4679-a015-b87808b31702 Spain |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000018 - Insert/cover for communication technology |
| ETIM 10 | EC000018 - Insert/cover for communication technology |
