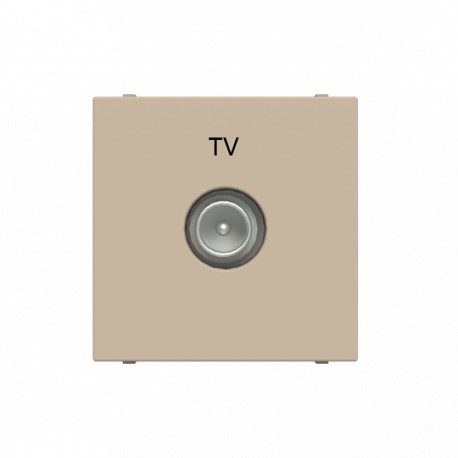

NIESSEN 2CLA225070N1901 2CLA225070N1901 N2250.7 CV NIESSEN Final TV socket type M CV View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA225070N1901 N2250.7 CV NIESSEN Final TV socket type M CV

2CLA225070N1901

N2250.7 CV

NIESSEN

10 Pcs.

Toma TV final tipo M CV Final TV socket type M CV Color: Champagne.Single TV outlet - Dead-endM type - 9,52mm maleFor 75Ω impedance coaxial cableAvoid small bending radiusFrequency range: 5 - 2.400 MhzConnection loss: 1 dBIsolation: >16 dBReturn loss: >7,6 dBDC path (Vdc / mA / Tono): 34 max. / 500 max. / 22kHz - DiSEqCSize: 2 modules.

Automation > Insert/cover for communication technology
Flush-mounting series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A terminal TV socket from Niessen, item 2CLA225070N1901, terminates coaxial cable runs for television and satellite signal distribution. Final TV outlets maintain correct impedance characteristics to prevent signal reflection at the end of a transmission line.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Extended Product Type: N2250.7 CV
  • Product ID: 2CLA225070N1901
  • Catalog Description: TV outlet SAT 1 gang Champagne - Zenit
  • Application: SAT
  • Design Range: Zenit
  • Mounting Type: Flush Mounted
  • Type of Fastening: Engage (Snap)
  • Outlet Orientation: Straight
  • Surface Finishing: Decor Matt
  • Material: Plastic Thermoplastic
  • Color: Champagne
  • Ambient Air Temperature: Operation -5 ... +35 °C Storage -5 ... +50 °C

More info

▲
  • Extended Product Type:
    N2250.7 CV
  • Product ID:
    2CLA225070N1901
  • EAN:
    8427238138169
  • Catalog Description:
    TV outlet SAT 1 gang Champagne - Zenit
  • Long Description:
    Color: Champagne.
    Single TV outlet - Dead-end
    M type - 9,52mm male
    For 75Ω impedance coaxial cable
    Avoid small bending radius
    Frequency range: 5 - 2.400 Mhz
    Connection loss: 1 dB
    Isolation: >16 dB
    Return loss: >7,6 dB
    DC path (Vdc / mA / Tono): 34 max. / 500 max. / 22kHz - DiSEqC
    Size: 2 modules.

Installation

Technical

  • Data Sheet, Technical Information:
    9AKK10103A5108
  • Application:
    SAT
  • Design Range:
    Zenit
  • Mounting Type:
    Flush Mounted
  • Type of Fastening:
    Engage (Snap)
  • Type of Indicator:
    Without indication field
  • Outlet Orientation:
    Straight
  • Surface Finishing:
    Decor
    Matt
  • Material:
    Plastic
    Thermoplastic
  • Color:
    Champagne
  • Number of Batteries:
    0

Environmental

  • Ambient Air Temperature:
    Operation -5 ... +35 °C
    Storage -5 ... +50 °C
  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CLC225070N1901
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    44mm
  • Product Net Height:
    44mm
  • Product Net Weight:
    0.046kg

Ordering

  • Replaced Product ID (OLD):
    2CLA225070N1902

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000018 - Insert/cover for communication technology
  • ETIM 9:
    EC000018 - Insert/cover for communication technology
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    85369010
