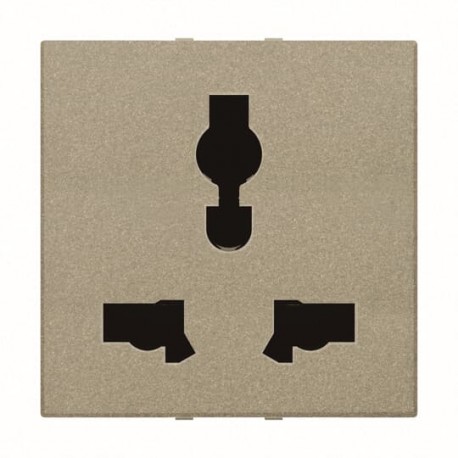

2CLA223900N1901 N2239 CV NIESSEN Universal plug CV
2CLA223900N1901
N2239 CV
NIESSEN
10 Pcs.
Automation > Socket outlet
Flush-mounting series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A universal plug socket accommodates various international plug configurations to support flexible equipment deployment in diverse operational environments. Technicians install these multi-standard units in control desks and service panels where temporary or multi-region devices require connection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Extended Product Type: N2239 CV
- Product ID: 2CLA223900N1901
- Catalog Description: Socket outlet multi-std Champagne - Zenit
- Instructions and Manuals: 2CLX210109N1001
- Data Sheet, Technical Information: 9AKK10103A5108
- Rated Voltage (U r ): 220 V
- Rated Current (I n ): 15 A
- Frequency ( f ): 50...60 Hz
- Number of Phases: 2
- Number of Active Pin Terminals: 0
- Number of Gangs: 1
- Design Range: Zenit
- Connection Type: Screw
- Mounting Type: Flush Mounted
- Socket Outlet Type: Multi - Standard Socket
- Type of Fastening: Snapper Mounting
More info
▲- Extended Product Type:
- N2239 CV
- Product ID:
- 2CLA223900N1901
- EAN:
- 8427238139135
- Catalog Description:
- Socket outlet multi-std Champagne - Zenit
- Long Description:
- Color: Champagne.
Rated voltage: 125 / 250 Vac
Rated current: 13 / 16A
Multiple type: 2P + E
Shuttered for child safety
Screw terminals
Size: 2 modules.
Installation
- Instructions and Manuals:
- 2CLX210109N1001
Technical
- Data Sheet, Technical Information:
- 9AKK10103A5108
- Rated Voltage (Ur):
- 220 V
- Rated Current (In):
- 15 A
- Frequency (f):
- 50...60 Hz
- Number of Phases:
- 2
- Number of Active Pin Terminals:
- 0
- Number of Gangs:
- 1
- Design Range:
- Zenit
- Connection Type:
- Screw
- Mounting Type:
- Flush Mounted
- Socket Outlet Type:
- Multi - Standard Socket
- Type of Fastening:
- Snapper Mounting
- Surface Finishing:
- Decor
Matt
- Material:
- Plastic
Thermoplastic
- Label Space Provided:
- No
- Legend:
- Without imprint
- Color:
- Champagne
- Number of Batteries:
- 0
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 44mm
- Product Net Height:
- 44mm
- Product Net Weight:
- 0.05kg
Ordering
- Replaced Product ID (OLD):
- 2CLA223900N1902
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC000125 - Socket outlet
- ETIM 9:
- EC000125 - Socket outlet
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85366990
- UNSPSC:
- 39121406
