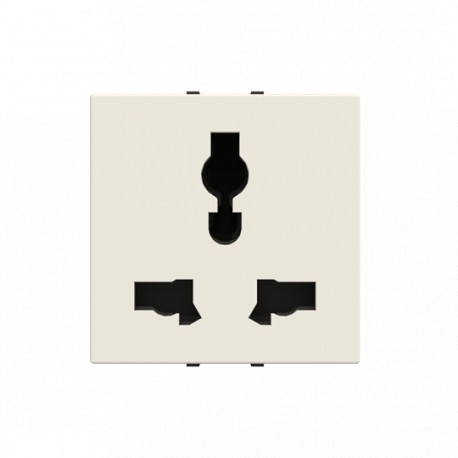

2CLA223900N1101 N2239 BL NIESSEN Enchufe universal BL
2CLA223900N1101
N2239 BL
NIESSEN
10 Pcs.
Automation > Socket outlet
Complete mechanism
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
You are viewing the 2CLA223900N1101 N2239 BL NIESSEN Enchufe universal BL universal socket outlet by Niessen, designed to provide a reliable power connection point in residential and commercial wiring circuits. These multi-standard receptacles accommodate various plug configurations within walls or panels to energize portable equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2CLX210109N1001
- Mounting Type: Flush-mounted
- Type of Fastening: Engage (Snap)
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK10103A5108
- Number of Phases: 2-phase
- Number of Active Pin Terminals: 0
- Connection Type: Screw Clamp
- Socket Outlet Type: Multi - Standard Socket
- Number of Batteries: 0
- Rated Voltage (U r ): 220 V
- Rated Current (I n ): 15 A
- Frequency ( f ): 50 … 60 Hz
- Power Supply Type: External
- Design Range: Zenit
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX210109N1001 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Engage (Snap) |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Number of Phases | 2-phase |
| Number of Active Pin Terminals | 0 |
| Connection Type | Screw Clamp |
| Socket Outlet Type | Multi - Standard Socket |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 220 V |
| Rated Current (In) | 15 A |
| Frequency (f) | 50 … 60 Hz |
| Power Supply Type | External |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Untreated |
| Glossy | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Without imprint |
| Label Space Provided | Without Label Space |
| RAL Number | RAL 9010 - Pure White |
| Color | White |
| Number of Gangs | 1-gang |
| Number of Modules | 2 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Height | 44 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 51 g |
| Ordering | |
| Replaced Product ID (OLD) | 2CLA223900N1102 |
| 2CLA223900N1103 | |
| Material Compliance | |
| RoHS Declaration | 2CLC223900N1101 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108469A7957 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240123 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 9efa581f-eecc-422e-82b9-0904be46f63a Spain |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000125 - Socket outlet |
| ETIM 10 | EC000125 - Socket outlet |
| UNSPSC | 39121406 |
