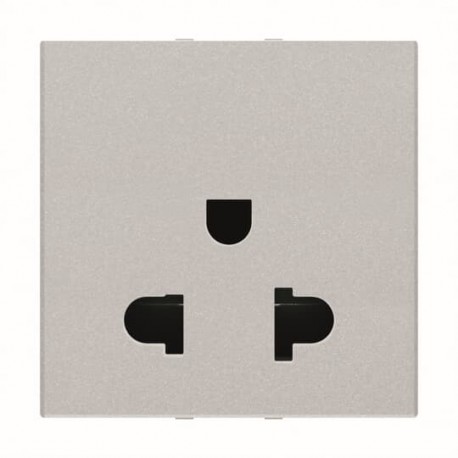

NIESSEN 2CLA223801N1301 2CLA223801N1301 N2238 PL NIESSEN Base de enchufe euroamericana 2M PL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA223801N1301 N2238 PL NIESSEN Base de enchufe euroamericana 2M PL

2CLA223801N1301

N2238 PL

NIESSEN

10 Pcs.

Base de enchufe euroamericana 2M PL Universal contact 2P+T PL Socket outlet insert/cover Without imprint Silver - Zenit

Automation > Socket outlet
Narrow mechanism an

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Niessen 2CLA223801N1301 N2238 PL NIESSEN Base de enchufe euroamericana 2M PL is a power socket outlet configured for flush-mounted electrical distribution networks. Units like this deliver reliable terminal connection points for equipment plugs in structured building wiring architectures. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 2CLX210109N1001
  • Mounting Type: Flush-mounted
  • Type of Fastening: Engage (Snap)
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Data Sheet, Technical Information: 9AKK10103A5108
  • Number of Phases: 2-phase
  • Number of Active Pin Terminals: 0
  • Connection Type: Screw Clamp
  • Socket Outlet Type: Power Socket Outlets - Italian P11/17 acc. to CEI 23-50
  • Number of Batteries: 0
  • Rated Voltage (U r ): 220 V
  • Rated Current (I n ): 15 A
  • Frequency ( f ): 50 … 60 Hz
  • Power Supply Type: External
  • Design Range: Zenit

More info

▲
Installation
Instructions and Manuals2CLX210109N1001
Mounting TypeFlush-mounted
Type of FasteningEngage (Snap)
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information9AKK10103A5108
Number of Phases2-phase
Number of Active Pin Terminals0
Connection TypeScrew Clamp
Socket Outlet TypePower Socket Outlets - Italian P11/17 acc. to CEI 23-50
Number of Batteries0
Electrical
Rated Voltage (Ur)220 V
Rated Current (In)15 A
Frequency (f)50 … 60 Hz
Power Supply TypeExternal
Design
Design RangeZenit
Surface FinishingDecor
Matt
MaterialPlastic
Thermoplastic
LegendWithout imprint
Label Space ProvidedWithout Label Space
ColorSilver
Number of Gangs1-gang
Number of Modules2
Dimensions
Product Net Width44 mm
Product Net Height44 mm
Product Net Depth / Length73 mm
Product Net Weight36 g
Ordering
Replaced Product ID (OLD)2CLA223801N1302
2CLA223800N1301
2CLA223800N1302
2CLA223800N1303
Material Compliance
RoHS Declaration2CLC223801N1301
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration9AKK108467A7464
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230816
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Certificates and Declarations
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000125 - Socket outlet
ETIM 10EC000125 - Socket outlet

Product Datasheet
