View larger
Images are for illustrative purposes only. Please refer to data sheet for details

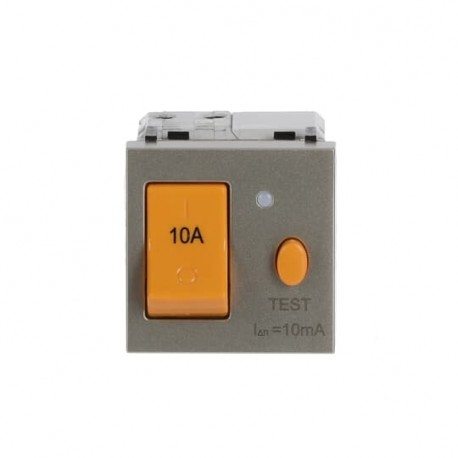

2CLA223420N1901 N2234.2 CV NIESSEN Prot.magnet.dif.(10mA) 10A CV
2CLA223420N1901
N2234.2 CV
NIESSEN
1 Pcs.
Prot.magnet.dif.(10mA) 10A CV
Built-in Device MCB + RCD 1P+N 2 10 A Type A Champagne - Zenit
Automation > Control switch
Flush-mounting series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 9AKK108470A2074 |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | Front IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Type of Residual Current | Type A |
| Number of Poles | 1P+N |
| Number of Protected Poles | 1 |
| Number of Switch Positions | 2 |
| Actuator Type | Rocker |
| Switch Type | On / Off |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | Maximum 230 V |
| Input Voltage Type | AC |
| Rated Current (In) | 10 A |
| Rated Frequency (f) | 50/60 Hz |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Color | Champagne |
| Dimensions | |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 44 mm |
| Product Net Height | 44 mm |
| Product Net Weight | 1 g |
| Ordering | |
| Replaced Product ID (OLD) | 2CLA223420N1902 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC002611 - Control switch |
| ETIM 10 | EC002611 - Control switch |
| UNSPSC | 39121602 |
