View larger
Images are for illustrative purposes only. Please refer to data sheet for details

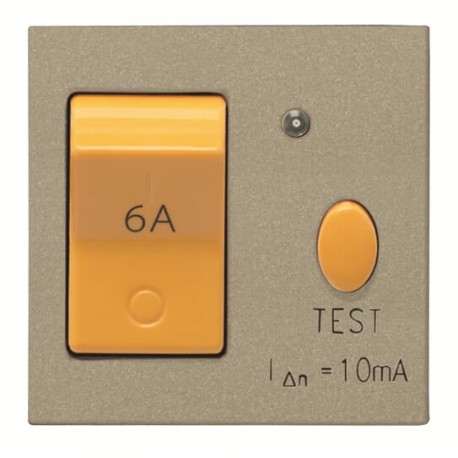

2CLA223410N1901 N2234.1 CV NIESSEN Prot.magnet.y dif.(10mA) 6A CV
2CLA223410N1901
N2234.1 CV
NIESSEN
1 Pcs.
Prot.magnet.y dif.(10mA) 6A CV
Color: Champagne.Rated voltage: 120 - 230 Vac; 50/60 Hz Rated current: 6A Braking capacity: 1.500A Residual current (sensitivity - I∆n): 10 mAC type magneto-thermic protection A type residual current protection Two-pole (1P + N) with 1 protected pole Size: 2 modules.
Automation > Control switch
Flush-mounting series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Extended Product Type:
- N2234.1 CV
- Product ID:
- 2CLA223410N1901
- EAN:
- 8427238093291
- Catalog Description:
- Built-in device MCB + RCD Champagne - Zenit
- Long Description:
- Color: Champagne.
Rated voltage: 120 - 230 Vac; 50/60 Hz
Rated current: 6A
Braking capacity: 1.500A
Residual current (sensitivity - I∆n): 10 mA
C type magneto-thermic protection
A type residual current protection
Two-pole (1P + N) with 1 protected pole
Size: 2 modules.
Installation
- Instructions and Manuals:
- 2CLX210109N1001
Technical
- Data Sheet, Technical Information:
- 9AKK10103A5108
- Rated Operational Voltage:
- Maximum 230 V
- Number of Poles:
- 1
- Number of Switch Positions:
- 2
- Design:
- Built-in device
- Design Range:
- Zenit
- Actuator Type:
- Rocker
- Switch Type:
- On / Off
- Surface Finishing:
- Decor
Matt
- Material:
- Plastic
Thermoplastic
- Color:
- Champagne
- Number of Batteries:
- 0
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- Front IP20
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Width in Number of Modular Spacings:
- 2
- Product Net Width:
- 44mm
- Product Net Height:
- 44mm
- Product Net Weight:
- 0.105kg
Ordering
- Replaced Product ID (OLD):
- 2CLA223410N1902
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC002611 - Control switch
- ETIM 9:
- EC002611 - Control switch
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85363010
- UNSPSC:
- 39121602
