View larger
Images are for illustrative purposes only. Please refer to data sheet for details

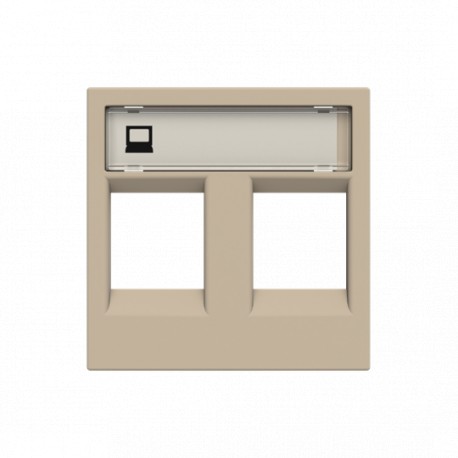

2CLA221820N1901 N2218.2 CV NIESSEN Tapa ventana 2 conectores CV
2CLA221820N1901
N2218.2 CV
NIESSEN
10 Pcs.
Tapa ventana 2 conectores CV
Window cover 2 CV connectors
Cover For data connection housing 2 gang Champagne - Zenit
Automation > Insert/cover for communication technology
Flush-mounting series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX210109N1001 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Engage (Snap) |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Application | For data connection housing |
| Type of Indicator | With indication plate |
| Outlet Orientation | Straight |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Decor;Matt |
| Material | Plastic;Thermoplastic |
| Color | Champagne |
| Number of Modules | 2 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Height | 44 mm |
| Product Net Depth / Length | 31 mm |
| Product Net Weight | 9 g |
| Ordering | |
| Replacement Product ID (NEW) | 2CLA221620N1901 |
| Replaced Product ID (OLD) | 2CLA221820N1902 |
| Material Compliance | |
| RoHS Declaration | 2CLC221820N1901 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108469A7957 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240123 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000018 - Insert/cover for communication technology |
| ETIM 10 | EC000018 - Insert/cover for communication technology |
| UNSPSC | 39121704 |
