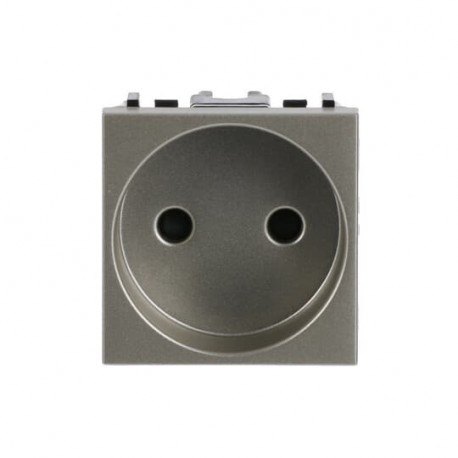

2CLA220300N1901 N2203 CV NIESSEN Base enchufe 2P europea CV
2CLA220300N1901
N2203 CV
NIESSEN
10 Pcs.
Automation > Socket outlet
Flush-mounting series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Niessen 2CLA220300N1901 is an electrical socket outlet engineered for flush mounting within standard wall boxes in residential and commercial buildings. Receptacles interface between building wiring and cord-connected equipment to supply stable operating power. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2CLX210109N1001
- Mounting Type: Flush-mounted
- Type of Fastening: Engage (Snap)
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK10103A5108
- Number of Phases: 2-phase
- Number of Active Pin Terminals: 0
- Connection Type: Screw Clamp
- Socket Outlet Type: EURO Plug
- Number of Batteries: 0
- Rated Voltage (U r ): 250 V
- Rated Current (I n ): 16 A
- Frequency ( f ): 50 … 60 Hz
- Power Supply Type: External
- Design Range: Zenit
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX210109N1001 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Engage (Snap) |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Number of Phases | 2-phase |
| Number of Active Pin Terminals | 0 |
| Connection Type | Screw Clamp |
| Socket Outlet Type | EURO Plug |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 16 A |
| Frequency (f) | 50 … 60 Hz |
| Power Supply Type | External |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Without imprint |
| Label Space Provided | Without Label Space |
| Color | Champagne |
| Number of Gangs | 1-gang |
| Number of Modules | 2 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Height | 44 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 1 g |
| Ordering | |
| Replaced Product ID (OLD) | 2CLA220300N1902 |
| Material Compliance | |
| RoHS Declaration | 2CLC220300N1901 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107046A9871 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000125 - Socket outlet |
| ETIM 10 | EC000125 - Socket outlet |
