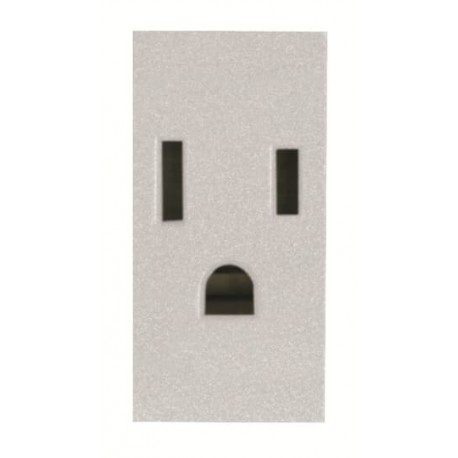

NIESSEN 2CLA212800N1301 2CLA212800N1301 N2128 PL NIESSEN Base contacto 2P+T tipo Nema PL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA212800N1301 N2128 PL NIESSEN Base contacto 2P+T tipo Nema PL

2CLA212800N1301

N2128 PL

NIESSEN

20 Pcs.

Base contacto 2P+T tipo Nema PL Contact base 2P+T type Nema PL Socket outlet insert/cover NEMA Without imprint Silver - Zenit

Automation > Socket outlet
Wide mechanism pl

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A NEMA-configured power socket outlet, part 2CLA212800N1301 from Niessen, is designed to accommodate specific North American plug types within international installations. These receptacles ensure proper grounding and voltage compatibility for imported equipment. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 2CLX210109N1001
  • Mounting Type: Flush-mounted
  • Type of Fastening: Engage (Snap)
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Data Sheet, Technical Information: 9AKK10103A5108
  • Number of Phases: 2-phase
  • Number of Active Pin Terminals: 0
  • Connection Type: Screw Clamp
  • Socket Outlet Type: Power Socket Outlets - US Grounded acc. to NEMA 5-15
  • Number of Batteries: 0
  • Rated Voltage (U r ): 250 V
  • Rated Current (I n ): 15 A
  • Frequency ( f ): 50 … 60 Hz
  • Power Supply Type: External
  • Design Range: Zenit

More info

▲
Installation
Instructions and Manuals2CLX210109N1001
Mounting TypeFlush-mounted
Type of FasteningEngage (Snap)
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information9AKK10103A5108
Number of Phases2-phase
Number of Active Pin Terminals0
Connection TypeScrew Clamp
Socket Outlet TypePower Socket Outlets - US Grounded acc. to NEMA 5-15
Number of Batteries0
Electrical
Rated Voltage (Ur)250 V
Rated Current (In)15 A
Frequency (f)50 … 60 Hz
Power Supply TypeExternal
Design
Design RangeZenit
Surface FinishingDecor
Matt
MaterialPlastic
Thermoplastic
LegendWithout imprint
Label Space ProvidedWithout Label Space
ColorSilver
Number of Gangs1-gang
Number of Modules1
Dimensions
Product Net Width22 mm
Product Net Height44 mm
Product Net Depth / Length73 mm
Product Net Weight26 g
Ordering
Replaced Product ID (OLD)2CLA212800N1302
2CLA212800N1303
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Certificates and Declarations
Declaration of Conformity - CE9AKK107046A9871
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000125 - Socket outlet
ETIM 10EC000125 - Socket outlet
